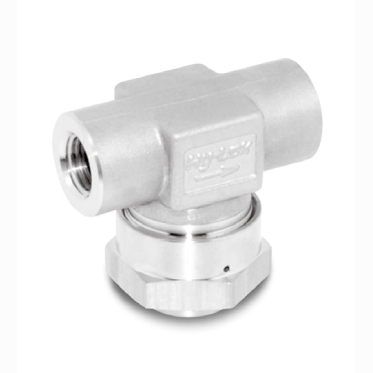

Micron Tee Filters

  • SS316 body material as standard
  • Replacement of filter elements with body in line
  • Compact and robust integral union bonnet design
  • Particle trapping for clean fluid

Description

Product Inlet End Connection Outlet End Connection Body Material Dimension L₁ (mm) Dimension E (mm) Dimension C (mm) Dimension L₂ (mm) Dimension L₃ (mm) PDF
FT-H-4T-BRAS 1/4″ Hy-Lok 1/4″ Hy-Lok Brass 33.00 28.50 11.00 33.00 38.80 PDF
FT-H-6T-BRAS 3/8″ Hy-Lok 3/8″ Hy-Lok Brass 36.20 28.50 11.00 36.20 38.80 PDF
FT-H-8T-BRAS 1/2″ Hy-Lok 1/2″ Hy-Lok Brass 38.70 28.50 11.00 38.70 38.80 PDF
FT-F-2N-BRAS 1/8″ Female NPT 1/8″ Female NPT Brass 25.00 28.50 11.00 25.00 38.80 PDF
FT-M-4N-BRAS 1/4″ Male NPT 1/4″ Male NPT Brass 25.50 28.50 11.00 25.50 38.80 PDF
FT-F-4N-BRAS 1/4″ Female NPT 1/4″ Female NPT Brass 27.00 28.50 11.00 27.00 38.80 PDF
FT-F-6N-BRAS 3/8″ Female NPT 3/8″ Female NPT Brass 27.00 28.50 12.70 27.00 41.00 PDF
FT-F-8N-BRAS 1/2″ Female NPT 1/2″ Female NPT Brass 31.00 31.75 15.80 31.00 44.00 PDF
FT-H-4T-S316 1/4″ Hy-Lok 1/4″ Hy-Lok Stainless steel 316 33.00 28.50 11.00 33.00 38.80 PDF
FT-H-6T-S316 3/8″ Hy-Lok 3/8″ Hy-Lok Stainless steel 316 36.20 28.50 11.00 36.20 38.80 PDF
FT-H-8T-S316 1/2″ Hy-Lok 1/2″ Hy-Lok Stainless steel 316 38.70 28.50 11.00 38.70 38.80 PDF
FT-F-2N-S316 1/8″ Female NPT 1/8″ Female NPT Stainless steel 316 25.00 28.50 11.00 25.00 38.80 PDF
FT-M-4N-S316 1/4″ Male NPT 1/4″ Male NPT Stainless steel 316 25.50 28.50 11.00 25.50 38.80 PDF
FT-F-4N-S316 1/4″ Female NPT 1/4″ Female NPT Stainless steel 316 27.00 28.50 11.00 27.00 38.80 PDF
FT-F-6N-S316 3/8″ Female NPT 3/8″ Female NPT Stainless steel 316 27.00 28.50 12.70 27.00 41.00 PDF
FT-F-8N-S316 1/2″ Female NPT 1/2″ Female NPT Stainless steel 316 31.00 31.75 15.80 31.00 44.00 PDF
