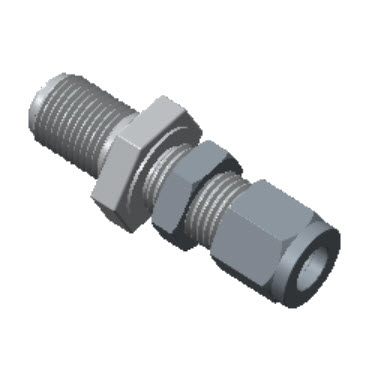

Hy-Lok Tube Fitting Bulkhead Connector

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.

Description

Product Dimension B (in) Dimension B (mm) Dimension d (in) Dimension d (mm) Dimension H (in) Dimension H1 (in) Dimension H2 (in) Dimension L (in) Dimension L (mm) Dimension N (in) Dimension N (mm) Panel Hole Size (in) Panel Hole Size (mm) Panel Thickness (in) Panel Thickness (mm) Tube O.D. (in) ZCR Size (in) PDF
H-ZBHC4-4 0.600 15.20 0.180 4.55 5/8 5/8 9/16 2.250 57.20 1.320 33.50 15/32 11.90 0.400 10.20 1/4 1/4 PDF
H-ZBHC4-4L48 0.600 15.20 0.180 4.55 5/8 5/8 9/16 1.880 47.80 1.050 26.70 15/32 11.90 0.130 3.30 1/4 1/4 PDF
H-ZBHC8-6 0.660 16.80 0.280 7.10 15/16 3/4 11/16 2.540 64.50 1.450 36.80 19/32 15.10 0.440 11.10 3/8 1/2 PDF
H-ZBHC8-8 0.900 22.90 0.400 10.14 15/16 15/16 7/8 2.740 69.60 1.650 41.90 25/32 19.80 0.500 12.70 1/2 1/2 PDF
