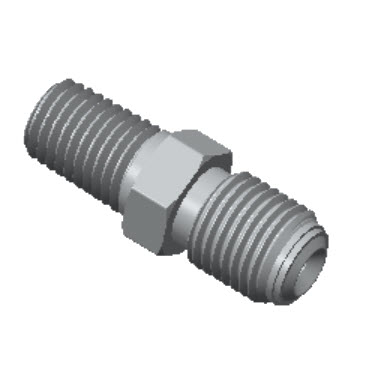

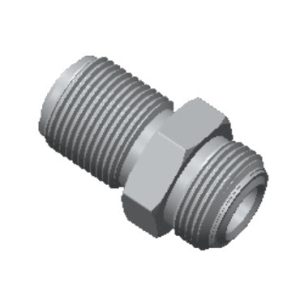

Male NPT Connector

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.

    Plating

  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
CONTACT US
FIND A DISTRIBUTOR
Category:

Description

Product Dimension d (in) Dimension d (mm) Dimension H (in) Dimension L (in) Dimension L (mm) Dimension P (in) ZCR Size (in) PDF
H-ZMC2-1N 0.090 2.30 3/8 1.070 27.20 1/16 1/8 PDF
H-ZMC2-2N 0.090 2.30 7/16 1.070 27.20 1/8 1/8 PDF
H-ZMC4-2N 0.180 4.55 5/8 1.310 33.30 1/8 1/4 PDF
H-ZMC4-4N 0.180 4.55 5/8 1.490 37.80 1/4 1/4 PDF
H-ZMC8-6N 0.380 9.65 15/16 1.650 41.90 3/8 1/2 PDF
H-ZMC8-8N 0.400 10.14 15/16 1.840 46.70 1/2 1/2 PDF
H-ZMC12-12N 0.620 15.70 1 5/16 2.190 55.60 3/4 3/4 PDF
H-ZMC16-16N 0.870 22.10 1 5/8 2.470 62.70 1 1 PDF
