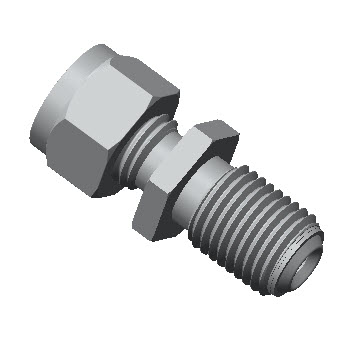

Hy-Lok Tube Fitting Connector

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
[variations_table]
[extract_table_to_array]

Description

Product Dimension B (in) Dimension B (mm) Dimension d (in) Dimension d (mm) Dimension H (in) Dimension H1 (in) Dimension L (in) Dimension L (mm) Dimension N (in) Dimension N (mm) Tube O.D. (in) ZCR Size (in) PDF
H-ZHC4-2 0.500 12.70 0.180 4.55 5/8 7/16 1.520 38.60 0.600 15.20 1/8 1/4 PDF
H-ZHC4-4 0.600 15.20 0.180 4.55 5/8 9/16 1.620 41.10 0.700 17.80 1/4 1/4 PDF
H-ZHC4-6 0.660 16.80 0.180 4.55 11/16 11/16 1.700 43.00 0.760 19.30 3/8 1/4 PDF
H-ZHC8-6 0.660 16.80 0.400 10.14 15/16 11/16 1.840 46.70 0.760 19.30 3/8 1/2 PDF
H-ZHC8-8 0.900 22.90 0.400 10.14 15/16 7/8 1.950 49.50 0.860 21.80 1/2 1/2 PDF
