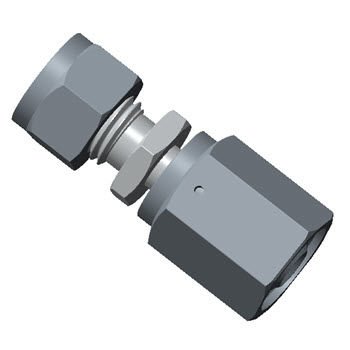

Swivel Hy-Lok Fitting Connector

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.

    Plating

  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.

Description

Product Dimension B (in) Dimension B (mm) Dimension d (in) Dimension d (mm) Dimension H (in) Dimension H1 (in) Dimension H2 (in) Dimension L (in) Dimension L (mm) Dimension N (in) Dimension N (mm) Tube O.D. (in) Tube O.D. (E ) (in) PDF
H-ZSMH4-4 0.600 15.20 0.180 4.55 3/4 1/2 9/16 1.940 49.30 0.700 17.80 1/4 1/4 PDF
H-ZSMH4-6 0.660 16.80 0.180 4.55 3/4 5/8 11/16 1.970 50.00 0.760 19.30 1/4 3/8 PDF
H-ZSMH8-8 0.900 22.90 0.400 10.14 1 1/16 13/16 7/8 2.230 56.60 0.860 21.80 1/2 1/2 PDF
