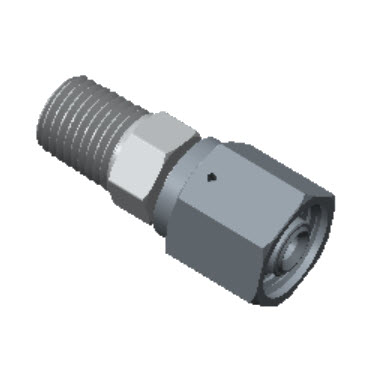

Swivel Male NPT Connector

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.

    Plating

  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.

Description

Product Dimension d (in) Dimension d (mm) Dimension H (in) Dimension H1 (in) Dimension L (in) Dimension L (mm) Dimension P (in) ZCR Size (in) PDF
H-ZSMC4-2N 0.180 4.55 3/4 7/16 1.580 40.10 1/8 1/4 PDF
H-ZSMC4-4N 0.180 4.55 3/4 9/16 1.790 45.50 1/4 1/4 PDF
H-ZSMC8-6N 0.400 10.14 1 1/16 11/16 1.890 48.00 3/8 1/2 PDF
H-ZSMC8-8N 0.400 10.14 1 1/16 7/8 2.090 53.10 1/2 1/2 PDF
