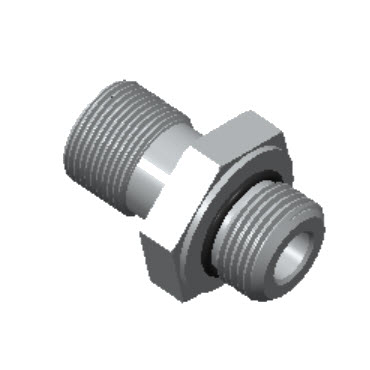

SAE/MS Connector

$0.00

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Converts SAE/MS thread boss to ZCO gland.

Tube Fittings DIN2353

Category:

Description

Product Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Hex Flat H (in) O-Ring Uniform Size Number Size (in) Straight Thread Working Pressure (psig) Working Pressure (bar) PDF
H-ZCOSC4-2U-S316 0.180 4.57 1.240 31.50 0.360 9.14 11/16 904 1/4 7/16 – 20 4500 310 PDF
H-ZCOSC4-6U-S316 0.180 4.57 1.170 29.72 0.390 9.91 11/16 906 1/4 9/16 – 18 4500 310 PDF
H-ZCOSC8-4U-S316 0.180 4.57 1.360 34.54 0.360 9.14 15/16 904 1/2 7/16 – 20 4500 310 PDF
H-ZCOSC8-6U-S316 0.300 7.60 1.390 35.31 0.390 9.91 15/16 906 1/2 9/16 – 18 4500 310 PDF
H-ZCOSC8-8U-S316 0.400 10.16 1.470 37.34 0.440 11.18 1 908 1/2 3/4 – 16 4500 310 PDF
H-ZCOSC12-12U-S316 0.620 15.75 1.730 43.94 0.590 14.99 1 3/8 912 3/4 1 1/16 – 12 3600 240 PDF
H-ZCOSC16-16U-S316 0.850 21.60 1.790 45.47 0.590 14.99 1 5/8 916 1 1 5/16 – 12 2900 190 PDF
