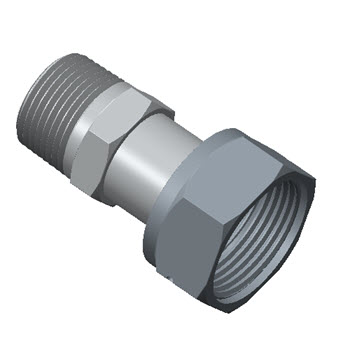

Swivel Male Connector

$0.00

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Converts female NPT thread to ZCO O-ring face seal.

Tube Fittings DIN2353

Category:

Description

Product Connection Type Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Dimension L₂ (in) Dimension L₂ (mm) Hex Flat H (in) Hex Flat H₁ (in) Size (in) Size P (in) Working Pressure (psig) Working Pressure (bar) PDF
H-ZCOSMC4-4N-S316 Male NPT 0.180 4.57 1.590 40.39 0.560 14.22 0.720 18.29 9/16 11/16 1/4 1/4 9800 670 PDF
H-ZCOSMC8-6N-S316 Male NPT 0.400 10.16 1.670 42.42 0.560 14.22 0.780 19.81 11/16 1 1/2 3/8 5600 380 PDF
H-ZCOSMC8-8N-S316 Male NPT 0.400 10.16 1.870 47.50 0.750 19.05 0.790 20.07 7/8 1 1/2 1/2 5600 380 PDF
H-ZCOSMC12-12N-S316 Male NPT 0.620 15.75 2.030 51.56 0.750 19.05 0.940 23.88 1 1/16 1 1/2 3/4 3/4 3900 260 PDF
H-ZCOSMC16-16N-S316 Male NPT 0.870 22.10 2.360 59.94 0.940 23.88 0.980 24.89 1 3/8 1 3/4 1 1 2900 190 PDF
