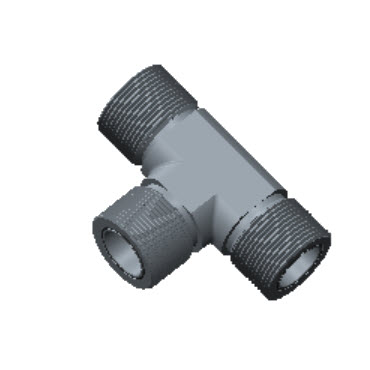

Tee

$0.00

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Connects ZCO glands.

Tube Fittings DIN2353

Category:

Description

Product Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Size (in) Working Pressure (psig) Working Pressure (bar) Wrench Flat H (in) PDF
H-ZCOTA-4-S316 0.180 4.57 1.920 48.79 0.960 24.38 1/4 14300 980 1/2 PDF
H-ZCOTA-8-S316 0.400 10.16 2.520 64.00 1.260 32.00 1/2 11100 760 13/16 PDF
H-ZCOTA-12-S316 0.620 15.75 2.960 75.18 1.480 37.59 3/4 10900 750 1 1/4 PDF
H-ZCOTA-16-S316 0.870 22.10 3.120 79.25 1.560 39.62 1 8800 600 1 11/16 PDF
