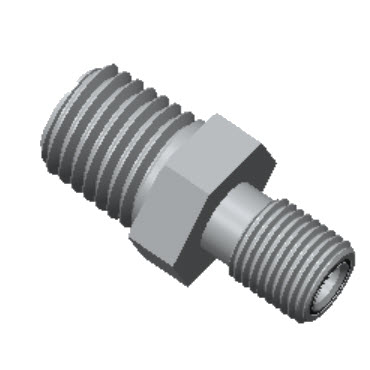

Male Connector

$0.00

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Converts female NPT thread to ZCO gland.

Tube Fittings DIN2353

Category:

Description

Product Connection Type Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Hex Flat H (in) Size (in) Size P (in) Working Pressure (psig) Working Pressure (bar) PDF
H-ZCOMC4-2N-S316 Male NPT 0.180 4.57 1.160 29.46 0.380 9.65 5/8 1/4 1/8 10000 680 PDF
H-ZCOMC4-4N-S316 Male NPT 0.180 4.57 1.340 34.04 0.560 14.22 5/8 1/4 1/4 13400 920 PDF
H-ZCOMC8-6N-S316 Male NPT 0.380 9.65 1.460 37.08 0.560 14.22 15/16 1/2 3/8 7800 530 PDF
H-ZCOMC8-8N-S316 Male NPT 0.400 10.16 1.650 41.91 0.750 19.05 15/16 1/2 1/2 10000 680 PDF
H-ZCOMC12-12N-S316 Male NPT 0.620 15.75 1.750 44.45 0.750 19.05 1 5/16 3/4 3/4 7300 500 PDF
H-ZCOMC16-16N-S316 Male NPT 0.870 22.10 1.970 50.04 0.940 23.88 1 5/8 1 1 5300 360 PDF
