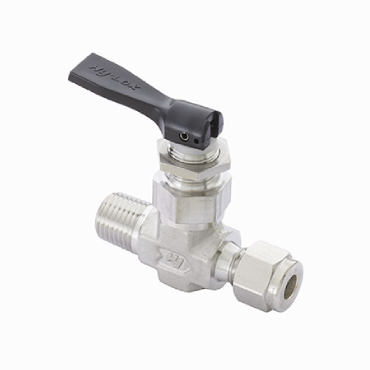

Manual Toggle Valves

  • Maximum working pressure up to 450psig (31bar)
  • Quick opening and closing
  • Manual and pneumatically actuated type
  • Straight, angle patterns
  • 316 stainless steel and brass body construction
  • 100% factory tested

Introduction
Hy-Lok’s Toggle Valves are designed for quick acting and positive on-off control of media in moderate pressure and temperature applications.

Features

  • Black Nylon Handle standard.
  • Pneumatic actuation.
  • Choice of Hy-Lok tube fitting, female NPT and male NPT end connections.
  • Orifice Range – from 0.080 to 0.250 in.(2.0 to 6.4 mm).
  • Panel mounting available.
Contact us
Find a distributor
SKU N/A Category

Description

Product Orifice (in) Orifice (mm) Cv Inlet End Connection Outlet End Connection End Connection Dimension L (in) Dimension L (mm) Dimension L1 (in) Dimension L1 (mm) Dimension L2 (in) Dimension L2 (mm) Dimension A (in) Dimension A (mm) Dimension B (in) Dimension B (mm) Dimension C (in) Dimension C (mm) Dimension H (in) Dimension H (mm) PDF
TG1-H-2T-BRAS 0.080 2.00 0.11 1/8″ Hy-Lok 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-H-3M-BRAS 0.080 2.00 0.11 3mm Hy-Lok 3mm Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-M-2N-BRAS 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.500 38.10 0.750 19.00 0.750 19.00 1.060 27.0 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-MH-2N2T-BRAS 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.730 43.90 0.750 19.00 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG2-H-4T-BRAS 0.125 3.20 0.20 1/4″ Hy-Lok 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-6M-BRAS 0.125 3.20 0.20 6mm Hy-Lok 6mm Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-8M-BRAS 0.125 3.20 0.20 8mm Hy-Lok 8mm Hy-Lok Hy-Lok Tube Fitting 2.220 56.40 1.110 28.20 1.110 28.20 1.430 36.4 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-F-2N-BRAS 0.125 3.20 0.20 1/8″ Female NPT 1/8″ Female NPT Female Thread 1.630 41.10 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-2N-BRAS 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.720 43.70 0.860 21.80 0.860 21.80 1.180 30.0 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-4N-BRAS 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Male NPT Male Thread 1.960 49.80 0.980 24.90 0.980 24.90 1.350 34.4 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MH-4N4T-BRAS 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.110 53.60 0.980 24.90 1.130 28.70 1.500 38.2 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MF-2N-BRAS 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Female NPT Female Thread 1.630 41.40 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG3-H-6T-BRAS 0.250 6.40 0.70 3/8″ Hy-Lok 3/8″ Hy-Lok Hy-Lok Tube Fitting 2.580 65.50 1.290 32.80 1.290 32.80 1.800 45.8 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-H-8T-BRAS 0.250 6.40 0.70 1/2″ Hy-Lok 1/2″ Hy-Lok Hy-Lok Tube Fitting 2.800 71.10 1.400 35.60 1.400 35.60 1.910 48.6 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-H-10M-BRAS 0.250 6.40 0.70 10mm Hy-Lok 10mm Hy-Lok Hy-Lok Tube Fitting 2.720 69.10 1.360 34.50 1.360 34.50 1.870 47.5 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-H-120M-BRAS 0.250 6.40 0.70 12mm Hy-Lok 12mm Hy-Lok Hy-Lok Tube Fitting 2.920 74.20 1.460 37.10 1.460 37.10 1.970 50.1 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-F-4N-BRAS 0.250 6.40 0.70 1/4″ Female NPT 1/4″ Female NPT Female Thread 2.120 53.80 1.060 26.90 1.060 26.90 1.570 39.9 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-M-6N-BRAS 0.250 6.40 0.70 3/8″ Male NPT 3/8″ Male NPT Male Thread 2.250 57.20 1.120 28.40 1.120 28.40 1.630 41.4 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG1-H-2T-S316 0.080 2.00 0.11 1/8″ Hy-Lok 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-H-3M-S316 0.080 2.00 0.11 3mm Hy-Lok 3mm Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-M-2N-S316 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.500 38.10 0.750 19.00 0.750 19.00 1.060 27.0 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-MH-2N2T-S316 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.730 43.90 0.750 19.00 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG2-H-4T-S316 0.125 3.20 0.20 1/4″ Hy-Lok 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-6M-S316 0.125 3.20 0.20 6mm Hy-Lok 6mm Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-8M-S316 0.125 3.20 0.20 8mm Hy-Lok 8mm Hy-Lok Hy-Lok Tube Fitting 2.220 56.40 1.110 28.20 1.110 28.20 1.430 36.4 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-F-2N-S316 0.125 3.20 0.20 1/8″ Female NPT 1/8″ Female NPT Female Thread 1.630 41.10 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-2N-S316 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.720 43.70 0.860 21.80 0.860 21.80 1.180 30.0 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-4N-S316 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Male NPT Male Thread 1.960 49.80 0.980 24.90 0.980 24.90 1.350 34.4 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MH-4N4T-S316 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.110 53.60 0.980 24.90 1.130 28.70 1.500 38.2 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MF-2N-S316 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Female NPT Female Thread 1.630 41.40 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
Product Orifice (in) Orifice (mm) Cv Inlet End Connection Outlet End Connection End Connection Dimension L (in) Dimension L (mm) Dimension L1 (in) Dimension L1 (mm) Dimension L2 (in) Dimension L2 (mm) Dimension A (in) Dimension A (mm) Dimension B (in) Dimension B (mm) Dimension C (in) Dimension C (mm) Dimension H (in) Dimension H (mm) PDF
TG1-H-2T-BRAS 0.080 2.00 0.11 1/8″ Hy-Lok 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-H-3M-BRAS 0.080 2.00 0.11 3mm Hy-Lok 3mm Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-M-2N-BRAS 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.500 38.10 0.750 19.00 0.750 19.00 1.060 27.0 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-MH-2N2T-BRAS 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.730 43.90 0.750 19.00 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG2-H-4T-BRAS 0.125 3.20 0.20 1/4″ Hy-Lok 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-6M-BRAS 0.125 3.20 0.20 6mm Hy-Lok 6mm Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-8M-BRAS 0.125 3.20 0.20 8mm Hy-Lok 8mm Hy-Lok Hy-Lok Tube Fitting 2.220 56.40 1.110 28.20 1.110 28.20 1.430 36.4 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-F-2N-BRAS 0.125 3.20 0.20 1/8″ Female NPT 1/8″ Female NPT Female Thread 1.630 41.10 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-2N-BRAS 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.720 43.70 0.860 21.80 0.860 21.80 1.180 30.0 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-4N-BRAS 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Male NPT Male Thread 1.960 49.80 0.980 24.90 0.980 24.90 1.350 34.4 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MH-4N4T-BRAS 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.110 53.60 0.980 24.90 1.130 28.70 1.500 38.2 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MF-2N-BRAS 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Female NPT Female Thread 1.630 41.40 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG3-H-6T-BRAS 0.250 6.40 0.70 3/8″ Hy-Lok 3/8″ Hy-Lok Hy-Lok Tube Fitting 2.580 65.50 1.290 32.80 1.290 32.80 1.800 45.8 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-H-8T-BRAS 0.250 6.40 0.70 1/2″ Hy-Lok 1/2″ Hy-Lok Hy-Lok Tube Fitting 2.800 71.10 1.400 35.60 1.400 35.60 1.910 48.6 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-H-10M-BRAS 0.250 6.40 0.70 10mm Hy-Lok 10mm Hy-Lok Hy-Lok Tube Fitting 2.720 69.10 1.360 34.50 1.360 34.50 1.870 47.5 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-H-120M-BRAS 0.250 6.40 0.70 12mm Hy-Lok 12mm Hy-Lok Hy-Lok Tube Fitting 2.920 74.20 1.460 37.10 1.460 37.10 1.970 50.1 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-F-4N-BRAS 0.250 6.40 0.70 1/4″ Female NPT 1/4″ Female NPT Female Thread 2.120 53.80 1.060 26.90 1.060 26.90 1.570 39.9 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG3-M-6N-BRAS 0.250 6.40 0.70 3/8″ Male NPT 3/8″ Male NPT Male Thread 2.250 57.20 1.120 28.40 1.120 28.40 1.630 41.4 0.510 13.00 1.06 26.90 3.56 90.40 PDF
TG1-H-2T-S316 0.080 2.00 0.11 1/8″ Hy-Lok 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-H-3M-S316 0.080 2.00 0.11 3mm Hy-Lok 3mm Hy-Lok Hy-Lok Tube Fitting 1.960 49.80 0.980 24.90 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-M-2N-S316 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.500 38.10 0.750 19.00 0.750 19.00 1.060 27.0 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG1-MH-2N2T-S316 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.730 43.90 0.750 19.00 0.980 24.90 1.300 32.9 0.310 8.00 0.86 21.90 2.84 72.20 PDF
TG2-H-4T-S316 0.125 3.20 0.20 1/4″ Hy-Lok 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-6M-S316 0.125 3.20 0.20 6mm Hy-Lok 6mm Hy-Lok Hy-Lok Tube Fitting 2.260 57.40 1.130 28.70 1.130 28.70 1.450 36.9 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-H-8M-S316 0.125 3.20 0.20 8mm Hy-Lok 8mm Hy-Lok Hy-Lok Tube Fitting 2.220 56.40 1.110 28.20 1.110 28.20 1.430 36.4 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-F-2N-S316 0.125 3.20 0.20 1/8″ Female NPT 1/8″ Female NPT Female Thread 1.630 41.10 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-2N-S316 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.720 43.70 0.860 21.80 0.860 21.80 1.180 30.0 0.320 8.20 0.85 21.70 2.83 72.00 PDF
TG2-M-4N-S316 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Male NPT Male Thread 1.960 49.80 0.980 24.90 0.980 24.90 1.350 34.4 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MH-4N4T-S316 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.110 53.60 0.980 24.90 1.130 28.70 1.500 38.2 0.370 9.50 0.85 21.70 2.83 72.00 PDF
TG2-MF-2N-S316 0.125 3.20 0.20 1/8″ Male NPT 1/8″ Female NPT Female Thread 1.630 41.40 0.810 20.60 0.810 20.60 1.130 28.8 0.320 8.20 0.85 21.70 2.83 72.00 PDF
