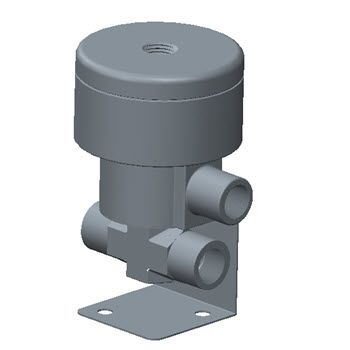

Actuated Toggle Valves

  • Maximum working pressure up to 450psig (31bar)
  • Quick opening and closing
  • 316 stainless steel and brass body construction
  • 100% factory tested

Features

  • Valve and actuator are fully assembled
  • O-ring stem seal – no packing adjustment requirement
  • Actuator material is aluminum
  • Reliable piston design for enhance cycle life
  • Low actuation pressure
  • Rotatable actuator port allows easy installation
Contact us
Find a distributor
Category

Description

Product Orifice (in) Orifice (mm) Cv Inlet End Connection Outlet End Connection End Connection Dimension A (in) Dimension A (mm) Dimension B (in) Dimension B (mm) Dimension H (in) Dimension H (mm) Dimension H1 (in) Dimension H1 (mm) Dimension H2 (in) Dimension H2 (mm) PDF
TG1-H-2T-BRAS 0.080 2.00 0.11 1/8″ Hy-Lok 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.960 49.8 0.790 20.10 2.90 73.80 3/4 19.00 2.16 54.80 PDF
TG1-M-2N-BRAS 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.500 38.1 0.790 20.10 2.90 73.80 3/4 19.00 2.16 54.80 PDF
TG1-MH-2N2T-BRAS 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.730 43.9 0.790 20.10 2.90 73.80 3/4 19.00 2.16 54.80 PDF
TG2-H-4T-BRAS 0.125 3.20 0.20 1/4″ Hy-Lok 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.260 57.4 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-H-6M-BRAS 0.125 3.20 0.20 6mm Hy-Lok 6mm Hy-Lok Hy-Lok Tube Fitting 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-H-8M-BRAS 0.125 3.20 0.20 8mm Hy-Lok 8mm Hy-Lok Hy-Lok Tube Fitting 2.220 56.4 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-F-2N-BRAS 0.125 3.20 0.20 1/8″ Female NPT 1/8″ Female NPT Female Thread 1.630 41.4 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-M-4N-BRAS 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Male NPT Male Thread 1.960 49.8 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-MH-4N4T-BRAS 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.110 53.6 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG1-H-2T-S316 0.080 2.00 0.11 1/8″ Hy-Lok 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.960 49.8 0.790 20.10 2.90 73.80 3/4 19.00 2.16 54.80 PDF
TG1-M-2N-S316 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Male NPT Male Thread 1.500 38.1 0.790 20.10 2.90 73.80 3/4 19.00 2.16 54.80 PDF
TG1-MH-2N2T-S316 0.080 2.00 0.11 1/8″ Male NPT 1/8″ Hy-Lok Hy-Lok Tube Fitting 1.730 43.9 0.790 20.10 2.90 73.80 3/4 19.00 2.16 54.80 PDF
TG2-H-4T-S316 0.125 3.20 0.20 1/4″ Hy-Lok 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.260 57.4 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-H-6M-S316 0.125 3.20 0.20 6mm Hy-Lok 6mm Hy-Lok Hy-Lok Tube Fitting 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-H-8M-S316 0.125 3.20 0.20 8mm Hy-Lok 8mm Hy-Lok Hy-Lok Tube Fitting 2.220 56.4 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-F-2N-S316 0.125 3.20 0.20 1/8″ Female NPT 1/8″ Female NPT Female Thread 1.630 41.4 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-M-4N-S316 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Male NPT Male Thread 1.960 49.8 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
TG2-MH-4N4T-S316 0.125 3.20 0.20 1/4″ Male NPT 1/4″ Hy-Lok Hy-Lok Tube Fitting 2.110 53.6 0.780 19.90 2.90 73.80 0.76 19.20 2.15 54.60 PDF
