Straight Pattern

[variations_table]
[extract_table_to_array]

Description

Product Inlet End Connection Orifice (mm) Outlet End Connection Flow Coefficient (Cv) Dimension L (mm) Dimension H (mm) Dimension C (mm) Dimension F₁ (mm) Dimension G (mm) PDF
NV1-F-2N-BRAS 1/8″ Female NPT 2.00 1/8″ Female NPT 0.1 42.00 51.20 30.50 32.00 13.50 PDF

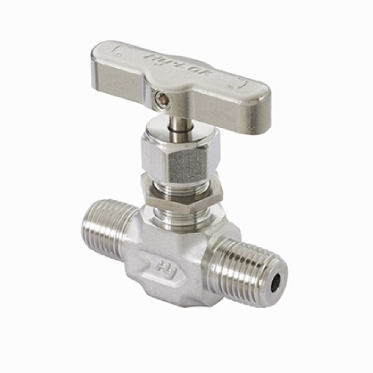

NV1-M-2N-BRAS 1/8″ Male NPT 2.00 1/8″ Male NPT 0.1 42.00 51.20 29.50 32.00 13.50 PDF
NV1-MH-2N2T-BRAS 1/8″ Male NPT 2.00 1/8″ Hy-Lok 0.1 47.00 51.20 35.50 32.00 13.50 PDF
NV1-H-2T-BRAS 1/8″ Hy-Lok 2.00 1/8″ Hy-Lok 0.1 52.00 51.20 35.50 32.00 13.50 PDF
NV1-H-3M-BRAS 3mm Hy-Lok 2.00 3mm Hy-Lok 0.1 52.00 51.20 35.50 32.00 13.50 PDF
NV2-F-2N-BRAS 1/8″ Female NPT 4.30 1/8″ Female NPT 0.4 42.00 51.20 30.50 45.00 13.50 PDF
NV2-M-2N-BRAS 1/8″ Male NPT 4.30 1/8″ Male NPT 0.4 42.00 51.20 30.50 45.00 13.50 PDF
NV2-M-4N-BRAS 1/4″ Male NPT 4.30 1/4″ Male NPT 0.4 50.00 51.20 34.50 45.00 13.50 PDF
NV2-MH-4N4T-BRAS 1/4″ Male NPT 4.30 1/4″ Hy-Lok 0.4 53.80 51.20 38.30 45.00 13.50 PDF
NV2-H-6M-BRAS 6mm Hy-Lok 4.30 6mm Hy-Lok 0.4 57.60 51.20 38.30 45.00 13.50 PDF
NV2-H-4T-BRAS 1/4″ Hy-Lok 4.30 1/4″ Hy-Lok 0.4 57.60 51.20 38.30 45.00 13.50 PDF
NV2-H-8M-BRAS 8mm Hy-Lok 4.30 8mm Hy-Lok 0.4 59.20 51.20 39.10 45.00 13.50 PDF
NV3-F-4N-BRAS 1/4″ Female NPT 6.30 1/4″ Female NPT 0.7 56.00 63.60 41.00 64.00 20.00 PDF
NV3-F-4R-BRAS 1/4″ Female ISO 6.30 1/4″ Female ISO 0.7 56.00 63.60 41.00 64.00 20.00 PDF
NV3-MF-4N-BRAS 1/4″ Male NPT 6.30 1/4″ Female NPT 0.7 56.00 63.60 41.00 64.00 20.00 PDF
NV3-MH-4N6T-BRAS 1/4″ Male NPT 6.30 3/8″ Hy-Lok 0.7 61.20 63.60 46.20 64.00 20.00 PDF
NV3-M-6N-BRAS 3/8″ Male NPT 6.30 3/8″ Male NPT 0.7 58.00 63.60 42.00 64.00 20.00 PDF
NV3-MH-6N6T-BRAS 3/8″ Male NPT 6.30 3/8″ Hy-Lok 0.7 62.20 63.60 46.20 64.00 20.00 PDF
NV3-MH-6N8T-BRAS 3/8″ Male NPT 6.30 1/2″ Hy-Lok 0.7 65.00 63.60 49.00 64.00 20.00 PDF
NV3-H-10M-BRAS 10mm Hy-Lok 6.30 10mm Hy-Lok 0.7 66.40 63.60 46.20 64.00 20.00 PDF
NV3-H-6T-BRAS 3/8″ Hy-Lok 6.30 3/8″ Hy-Lok 0.7 66.40 63.60 46.20 64.00 20.00 PDF
NV3-H-12M-BRAS 12mm Hy-Lok 6.30 12mm Hy-Lok 0.7 72.00 63.60 49.00 64.00 20.00 PDF
NV3-H-8T-BRAS 1/2″ Hy-Lok 6.30 1/2″ Hy-Lok 0.7 72.00 63.60 49.00 64.00 20.00 PDF
NV4-F-6N-BRAS 3/8″ Female NPT 9.50 3/8″ Female NPT 1.8 76.00 91.70 57.00 76.00 22.50 PDF
NV4-F-6R-BRAS 3/8″ Female ISO 9.50 3/8″ Female ISO 1.8 76.00 91.70 57.00 76.00 22.50 PDF
NV4-F-8N-BRAS 1/2″ Female NPT 9.50 1/2″ Female NPT 1.8 76.00 91.70 57.00 76.00 22.50 PDF
NV4-F-8R-BRAS 1/2″ Female ISO 9.50 1/2″ Female ISO 1.8 76.00 91.70 57.00 76.00 22.50 PDF
NV4-M-8N-BRAS 1/2″ Male NPT 9.50 1/2″ Male NPT 1.8 76.00 91.70 57.00 76.00 22.50 PDF
NV4-MF-8N-BRAS 1/2″ Male NPT 9.50 1/2″ Female NPT 1.8 76.00 91.70 57.00 76.00 22.50 PDF
NV4-H-8T-BRAS 1/2″ Hy-Lok 9.50 1/2″ Hy-Lok 1.8 97.00 91.70 67.50 76.00 22.50 PDF
