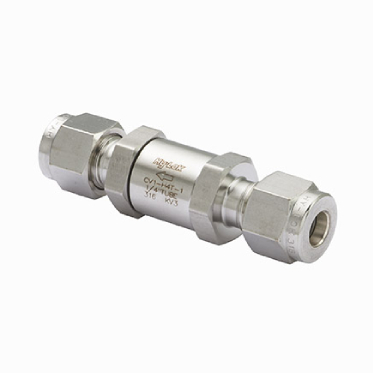

700 Series: Check Valves

  • Pressure rating up to 3000 psig (206 bar) at 70ºF(21ºC)
  • Temperature rating up to 375ºF (191ºC) with standard Viton O-ring
  • Body materials available in 316 stainless steel and brass
  • 100% factory tested for cracking and reseal
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Body Material Inlet End Connection Orifice (in) Orifice (mm) Outlet End Connection Cv Dimension L (mm) Dimension l (mm) Dimension H (mm) Dimension H1 (mm) PDF
CV1-H-2T-BRAS Brass 1/8″ Hy-Lok 4.80 1/8″ Hy-Lok 0.16 55.60 30.20 11.11 15.88 PDF
CV1-M-2N-BRAS Brass 1/8″ Male NPT 4.80 1/8″ Male NPT 0.47 44.40 15.88 PDF
CV1-F-2N-BRAS Brass 1/8″ Female NPT 4.80 1/8″ Female NPT 0.47 46.60 15.88 PDF
CV1-H-4T-BRAS Brass 1/4″ Hy-Lok 4.80 1/4″ Hy-Lok 0.47 60.00 29.50 14.29 15.88 PDF
CV1-H-6M-BRAS Brass 6mm Hy-Lok 4.80 6mm Hy-Lok 0.47 60.00 29.40 14.00 15.88 PDF
CV1-MH-4N4T-BRAS Brass 1/4″ Male NPT 4.80 1/4″ Hy-Lok 0.47 56.40 14.29 15.88 PDF
CV1-M-4N-BRAS Brass 1/4″ Male NPT 4.80 1/4″ Male NPT 0.47 53.40 15.88 PDF
CV1-F-4N-BRAS Brass 1/4″ Female NPT 4.80 1/4″ Female NPT 0.47 54.60 19.05 PDF
CV2-H-6T-BRAS Brass 3/8″ Hy-Lok 7.10 3/8″ Hy-Lok 1.48 74.80 41.30 17.46 22.22 PDF
CV2-H-10M-BRAS Brass 10mm Hy-Lok 7.10 10mm Hy-Lok 1.48 74.80 40.40 19.00 22.22 PDF
CV2-M-6N-BRAS Brass 3/8″ Male NPT 7.10 3/8″ Male NPT 1.48 64.60 22.22 PDF
CV3-F-6N-BRAS Brass 3/8″ Female NPT 10.00 3/8″ Female NPT 1.70 63.80 22.22 PDF
CV3-H-8T-BRAS Brass 1/2″ Hy-Lok 10.00 1/2″ Hy-Lok 1.70 80.20 34.50 22.22 22.22 PDF
CV3-H-12M-BRAS Brass 12mm Hy-Lok 10.00 12mm Hy-Lok 1.70 80.20 34.60 22.00 22.22 PDF
CV3-M-8N-BRAS Brass 1/2″ Male NPT 10.00 1/2″ Male NPT 1.70 74.40 22.22 PDF
CV4-F-8N-BRAS Brass 1/2″ Female NPT 13.50 1/2″ Female NPT 2.60 84.70 28.58 PDF
CV4-H-10T-BRAS Brass 5/8″ Hy-Lok 13.50 5/8″ Hy-Lok 2.60 91.80 48.10 25.40 28.58 PDF
CV5-H-12T-BRAS Brass 3/4″ Hy-Lok 16.00 3/4″ Hy-Lok 5.20 110.70 61.90 28.56 31.75 PDF
CV5-M-12N-BRAS Brass 3/4″ Male NPT 16.00 3/4″ Male NPT 5.20 105.30 31.75 PDF
CV5-F-12N-BRAS Brass 3/4″ Female NPT 16.00 3/4″ Female NPT 5.20 103.00 31.75 PDF
CV6-H-16T-BRAS Brass 1″ Hy-lok 18.00 1″ Hy-lok 8.00 121.20 58.70 38.10 34.93 PDF
CV6-M-16N-BRAS Brass 1″ Male NPT 18.00 1″ Male NPT 8.00 116.20 34.93 PDF
CV6-F-16N-BRAS Brass 1″ Female NPT 18.00 1″ Female NPT 8.00 111.40 41.28 PDF
CV1-H-2T-S316 Stainless steel 316 1/8″ Hy-Lok 4.80 1/8″ Hy-Lok 0.16 55.60 30.20 11.11 15.88 PDF
CV1-M-2N-S316 Stainless steel 316 1/8″ Male NPT 4.80 1/8″ Male NPT 0.47 44.40 15.88 PDF
CV1-F-2N-S316 Stainless steel 316 1/8″ Female NPT 4.80 1/8″ Female NPT 0.47 46.60 15.88 PDF
CV1-H-4T-S316 Stainless steel 316 1/4″ Hy-Lok 4.80 1/4″ Hy-Lok 0.47 60.00 29.50 14.29 15.88 PDF
CV1-H-6M-S316 Stainless steel 316 6mm Hy-Lok 4.80 6mm Hy-Lok 0.47 60.00 29.40 14.00 15.88 PDF
CV1-MH-4N4T-S316 Stainless steel 316 1/4″ Male NPT 4.80 1/4″ Hy-Lok 0.47 56.40 14.29 15.88 PDF
CV1-M-4N-S316 Stainless steel 316 1/4″ Male NPT 4.80 1/4″ Male NPT 0.47 53.40 15.88 PDF
