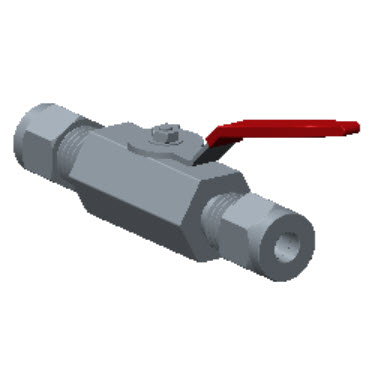

110 Series: Ball Valves

Applications

  • Chemical plants, refineries, steel mills. Fuel Lines, Heavy Vehicles

Features

  • Maximum Operating Pressure
    of 1000 psig(69 bar) at 100ºF(38ºC) with reinforced PTFE
  • Compact design with one piece hexagon body
  • Low torque for easy operation
  • Butterfly handle is available as an option

Description

Product Inlet End Connection Outlet End Connection Orifice Dimension D (mm) Dimension A (mm) Dimension B (mm) Dimension C (Hex) (mm) PDF
BVH-6M-BRAS 6mm Hy-Lok 6mm Hy-Lok 5.0 60.00 79.5 31.00 17.00 PDF
BVH-4T-BRAS 1/4″ Hy-Lok 1/4″ Hy-Lok 5.0 60.00 79.5 31.00 17.00 PDF
BVF-4N-BRAS 1/4″ Female NPT 1/4″ Female NPT 5.0 60.00 40 31.00 17.00 PDF
BVH-10M-BRAS 10mm Hy-Lok 10mm Hy-Lok 7.5 80.00 90 40.00 20.60 PDF
BVH-6T-BRAS 3/8″ Hy-Lok 3/8″ Hy-Lok 7.5 80.00 90 40.00 20.60 PDF
BVF-6N-BRAS 3/8″ Female NPT 3/8″ Female NPT 7.5 80.00 45 40.00 20.60 PDF
BVH-12M-BRAS 12mm Hy-Lok 12mm Hy-Lok 9.0 80.00 99 42.00 27.00 PDF
BVH-8T-BRAS 1/2″ Hy-Lok 1/2″ Hy-Lok 9.0 80.00 99 42.00 27.00 PDF
BVF-8N-BRAS 1/2″ Female NPT 1/2″ Female NPT 9.0 80.00 54.5 42.00 27.00 PDF
BVH-16M-BRAS 16mm Hy-Lok 16mm Hy-Lok 12.5 100.00 109 51.00 32.00 PDF
BVH-10T-BRAS 5/8″ Hy-Lok 5/8″ Hy-Lok 12.5 100.00 109 51.00 32.00 PDF
BVF-12N-BRAS 3/4″ Female NPT 3/4″ Female NPT 12.5 100.00 61 51.00 32.00 PDF
BVH-12T-BRAS 3/4″ Hy-Lok 3/4″ Hy-Lok 16.0 100.00 110 51.00 32.00 PDF
BVH-16T-BRAS 1″ Hy-lok 1″ Hy-lok 16.0 100.00 134 55.00 38.00 PDF
BVF-16N-BRAS 1″ Female NPT 1″ Female NPT 16.0 100.00 76 55.00 38.00 PDF
BVH-6M-S316 6mm Hy-Lok 6mm Hy-Lok 5.0 60.00 79.5 31.00 17.00 PDF
BVH-4T-S316 1/4″ Hy-Lok 1/4″ Hy-Lok 5.0 60.00 79.5 31.00 17.00 PDF
BVF-4N-S316 1/4″ Female NPT 1/4″ Female NPT 5.0 60.00 40 31.00 17.00 PDF
BVH-10M-S316 10mm Hy-Lok 10mm Hy-Lok 7.5 80.00 90 40.00 20.60 PDF
BVH-6T-S316 3/8″ Hy-Lok 3/8″ Hy-Lok 7.5 80.00 90 40.00 20.60 PDF
BVF-6N-S316 3/8″ Female NPT 3/8″ Female NPT 7.5 80.00 45 40.00 20.60 PDF
BVH-12M-S316 12mm Hy-Lok 12mm Hy-Lok 9.0 80.00 99 42.00 27.00 PDF
BVH-8T-S316 1/2″ Hy-Lok 1/2″ Hy-Lok 9.0 80.00 99 42.00 27.00 PDF
BVF-8N-S316 1/2″ Female NPT 1/2″ Female NPT 9.0 80.00 54.5 42.00 27.00 PDF
BVH-16M-S316 16mm Hy-Lok 16mm Hy-Lok 12.5 100.00 109 51.00 32.00 PDF
BVH-10T-S316 5/8″ Hy-Lok 5/8″ Hy-Lok 12.5 100.00 109 51.00 32.00 PDF
BVF-12N-S316 3/4″ Female NPT 3/4″ Female NPT 12.5 100.00 61 51.00 32.00 PDF
BVH-12T-S316 3/4″ Hy-Lok 3/4″ Hy-Lok 16.0 100.00 110 51.00 32.00 PDF
BVH-16T-S316 1″ Hy-lok 1″ Hy-lok 16.0 100.00 134 55.00 38.00 PDF
BVF-16N-S316 1″ Female NPT 1″ Female NPT 16.0 100.00 76 55.00 38.00 PDF
BVF-20N-BRAS 1 1/4″ Female NPT 1 1/4″ Female NPT 21.0 151.00 89.0 65.00 50.00 PDF
BVF-24N-BRAS 1 1/2″ Female NPT 1 1/2″ Female NPT 24.0 148.50 95.0 68.00 55.00 PDF
BVF-32N-BRAS 2″ Female NPT 2″ Female NPT 32.0 144.00 110.0 73.00 70.00 PDF
BVF-20N-S316 1 1/4″ Female NPT 1 1/4″ Female NPT 21.0 151.00 89.0 65.00 50.00 PDF
BVF-24N-S316 1 1/2″ Female NPT 1 1/2″ Female NPT 24.0 148.50 95.0 68.00 55.00 PDF
BVF-32N-S316 2″ Female NPT 2″ Female NPT 32.0 144.00 110.0 73.00 70.00 PDF
