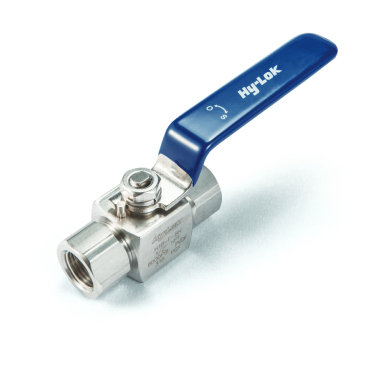

High Pressure Ball Valves 2-Way

  • Pressure rating up to 10000 psig (690 bar) at 70ºF(21ºC)
  • Temperature rating from -22ºF to 265ºF(-30ºC to 130ºC) with PVDF seat or from -65ºF to 500ºF (-54ºC to 260ºC) with PEEK seat
  • Small and compact design
  • Materials available in 316 stainless steel and alloy 400
  • 100% factory tested.

Description

Product Cv Inlet End Connection Body Material Orifice (in) Orifice (mm) Outlet End Connection Dimension L (mm) Dimension A (mm) Min. d (mm) Dimension H (mm) Dimension S (mm) Dimension H1 (mm) PDF
H1B-H-4T-S316 1.20 1/4″ Hy-Lok Stainless steel 316 10.00 1/4″ Hy-Lok 91.60 126.5 4.80 38.00 32.00 46.70 PDF
H1B-H-6T-S316 3.70 3/8″ Hy-Lok Stainless steel 316 10.00 3/8″ Hy-Lok 94.60 126.5 7.11 38.00 32.00 46.70 PDF
H1B-H-8T-S316 7.50 1/2″ Hy-Lok Stainless steel 316 10.00 1/2″ Hy-Lok 99.60 126.5 10.00 38.00 32.00 46.70 PDF
H1B-F-4N-S316 7.50 1/4″ Female NPT Stainless steel 316 10.00 1/4″ Female NPT 64.00 126.5 10.00 38.00 32.00 46.70 PDF
H1B-F-6N-S316 7.50 3/8″ Female NPT Stainless steel 316 10.00 3/8″ Female NPT 71.00 126.5 10.00 38.00 32.00 46.70 PDF
H1B-F-8N-S316 7.50 1/2″ Female NPT Stainless steel 316 10.00 1/2″ Female NPT 79.00 126.5 10.00 38.00 32.00 46.70 PDF
H1B-M-4N-S316 3.70 1/4″ Male NPT Stainless steel 316 10.00 1/4″ Male NPT 85.40 126.5 7.11 38.00 32.00 46.70 PDF
H1B-M-6N-S316 7.20 3/8″ Male NPT Stainless steel 316 10.00 3/8″ Male NPT 85.40 126.5 9.65 38.00 32.00 46.70 PDF
H1B-M-8N-S316 7.50 1/2″ Male NPT Stainless steel 316 10.00 1/2″ Male NPT 95.20 126.5 10.00 38.00 32.00 46.70 PDF
H2B-F-8N-S316 10.00 1/2″ Female NPT Stainless steel 316 12.70 1/2″ Female NPT 90.00 162.0 12.70 50.80 40.00 60.60 PDF
H2B-F-12N-S316 10.00 3/4″ Female NPT Stainless steel 316 12.70 3/4″ Female NPT 90.00 162.0 12.70 50.80 40.00 60.60 PDF
H2B-M-12N-S316 10.00 3/4″ Male NPT Stainless steel 316 12.70 3/4″ Male NPT 105.20 162.0 12.70 50.80 40.00 60.60 PDF
H2B-H-10T-S316 10.00 5/8″ Hy-Lok Stainless steel 316 12.70 5/8″ Hy-Lok 110.60 162.0 12.70 50.80 40.00 60.60 PDF
H2B-H-12T-S316 10.00 3/4″ Hy-Lok Stainless steel 316 12.70 3/4″ Hy-Lok 110.60 162.0 12.70 50.80 40.00 60.60 PDF
H3B-F-12N-S316 30.00 3/4″ Female NPT Stainless steel 316 19.00 3/4″ Female NPT 90.00 162.0 20.00 55.60 50.00 65.60 PDF
H3B-F-16N-S316 30.00 1″ Female NPT Stainless steel 316 19.00 1″ Female NPT 98.20 162.0 20.00 55.60 50.00 65.60 PDF
H3B-H-12T-S316 19.00 3/4″ Hy-Lok Stainless steel 316 19.00 3/4″ Hy-Lok 116.60 162.0 15.74 55.60 50.00 65.60 PDF
H3B-H-16T-S316 30.00 1″ Hy-lok Stainless steel 316 19.00 1″ Hy-lok 129.80 162.0 20.00 55.60 50.00 65.60 PDF
H3B-M-12N-S316 19.00 3/4″ Male NPT Stainless steel 316 19.00 3/4″ Male NPT 115.20 162.0 15.74 55.60 50.00 65.60 PDF
H3B-M-16N-S316 30.00 1″ Male NPT Stainless steel 316 19.00 1″ Male NPT 124.80 162.0 20.00 55.60 50.00 65.60 PDF
