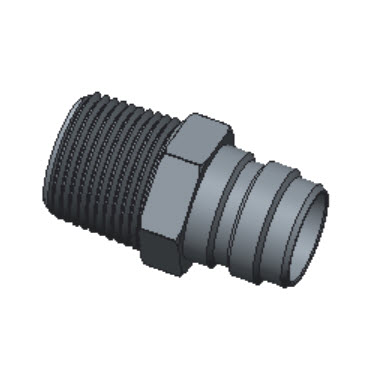

QF Series Male Pipe Thread Stem Connector Fittings

SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Pipe Size Flow Coefficient (Cv) Minimum Orifice (in) Minimum Orifice (mm) Length (L) (in) Length (L) (mm) Width Across Flat (H) (in) Width Across Flat (H) (mm) PDF
QF1NM-4N 1/4-18 NPT 1.7 0.240 6.10 1.590 40.40 9/16 14.20 PDF
QF1NM-6N 3/8-18 NPT 1.7 0.240 6.10 1.590 40.40 11/16 17.40 PDF
QF2NM-6N 3/8-18 NPT 7.1 0.410 10.40 1.650 41.90 7/8 22.20 PDF
QF2NM-8N 1/2-14 NPT 11.5 0.500 12.70 1.840 46.70 7/8 22.20 PDF
QF3NM-12N 3/4-14 NPT 23.6 0.720 18.30 2.020 51.20 1 1/16 26.90 PDF
QF4NM-16N 1-11.5 NPT 39.0 0.880 22.40 2.350 59.60 1 3/8 34.90 PDF
QF1NM-4R R 1/4 1.7 0.240 6.10 1.590 40.40 9/16 14.20 PDF
QF2NM-8R R 1/2 11.5 0.500 12.70 1.840 46.70 7/8 22.20 PDF
QF4NM-16R R 1 39.0 0.880 22.40 2.350 59.60 1 3/8 34.90 PDF
QF1NM-4G G 1/4 1.7 0.240 6.10 1.600 40.60 3/4 19.00 PDF
QF2NM-8G G 1/2 11.5 0.500 12.70 1.820 46.20 1 1/16 26.90 PDF
