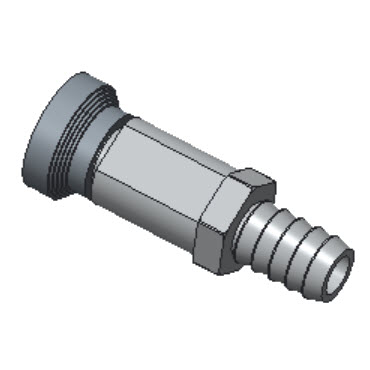

Q Series Hose Barb Body Connector Fittings

SKU N/A Category

Description

Product Length (L) (in) Length (L) (mm) Diameter (D) (in) Diameter (D) (mm) Width Across Flat (H) (mm) Width Across Flat (H) (in) Working Pressure (psig) Working Pressure (bar) Temperature Rating with FKM O-Ring (ºC) Temperature Rating with FKM O-Ring (ºF) PDF
Q1BHB-4T 2.390 60.70 0.910 23.10 15.80 5/8 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q2BHB-6T 2.690 68.30 1.030 26.20 19.10 3/4 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q3BHB-8T 3.170 80.60 1.210 30.70 23.80 15/16 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
