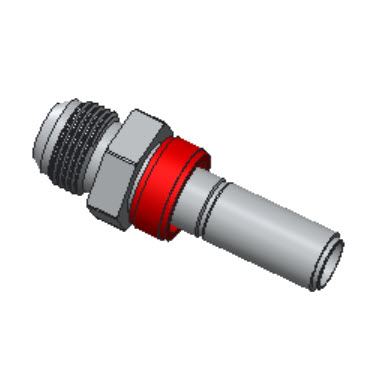

Q Series 37 Degree Flared Tube Stem Connector Fittings

Category Q Series Quick Connectors

Description

Product	Unified National Fine Thread (U)	Length (L) (in)	Length (L) (mm)	Width Across Flat (H) (in)	Width Across Flat (H) (mm)	Working Pressure (psig)	Working Pressure (bar)	Temperature Rating with FKM O-Ring (ºC)	Temperature Rating with FKM O-Ring (ºF)	PDF
Q1SS3F-4T	7/16″-20	2.210	56.10	5/8	15.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q2SS3F-6T	9/16″-18	2.310	58.80	3/4	19.10	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q3SS3F-8T	3/4″-16	2.760	70.10	15/16	23.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q1DS3F-4T	7/16″-20	2.270	57.70	5/8	15.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q2DS3F-6T	9/16″-18	2.440	61.90	3/4	19.10	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q3DS3F-8T	3/4″-16	2.960	75.20	15/16	23.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
