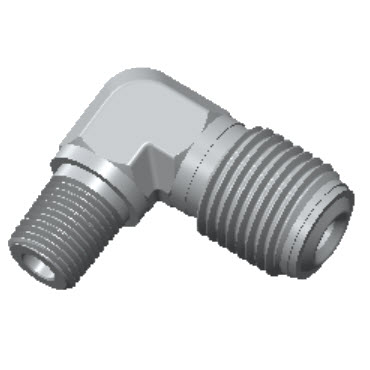

Male NPT Elbow

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
[variations_table]
[extract_table_to_array]

Description

Product Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L1 (in) Dimension L1 (mm) Dimension P (in) Flat (F) (in) ZCR Size (in) PDF
H-ZLMA4-2N 0.180 4.55 1.070 27.20 0.870 22.10 1/8 1/2 1/4 PDF
H-ZLMA4-4N 0.180 4.55 1.070 27.20 1.050 26.70 1/4 1/2 1/4 PDF
H-ZLMA8-6N 0.400 10.14 1.450 36.80 1.260 32.00 3/8 13/16 1/2 PDF
H-ZLMA8-8N 0.400 10.14 1.450 36.80 1.450 36.80 1/2 13/16 1/2 PDF
