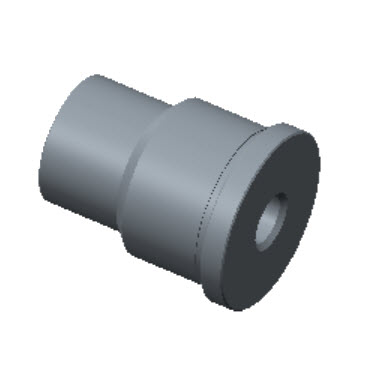

Socket Weld Reducing Gland

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Adapt tubing to ZCO O-ring face seal.
CONTACT US
FIND A DISTRIBUTOR
Category:

Description

Product Dimension D (in) Dimension D (mm) Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Size (in) Tube O.D. (in) Working Pressure (psig) Working Pressure (bar) PDF
H-ZCOSWRG4-2-S316 0.290 7.37 0.090 2.29 0.770 19.56 0.100 2.54 1/4 1/8 12600 860 PDF
H-ZCOSWRG8-2-S316 0.480 12.19 0.180 4.57 0.810 20.57 0.280 7.11 1/2 1/4 10700 730 PDF
