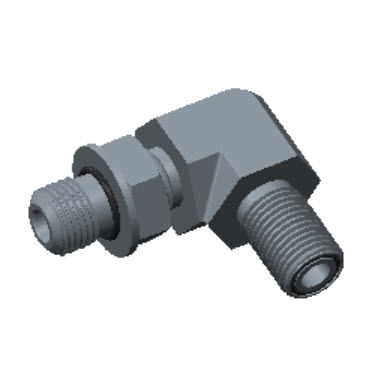

SAE/ME Adjustable Elbow

$0.00

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Converts SAE/ME straight thread boss to ZCO gland.

Tube Fittings DIN2353

Category:

Description

Product Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Dimension L₂ (in) Dimension L₂ (mm) Dimension U (in) Hex Flat H₁ (in) O-Ring Uniform Size Number Size (in) Straight Thread Working Pressure (psig) Working Pressure (bar) Wrench Flat H (in) PDF
H-ZCOSL4-4U-S316 0.180 4.57 1.190 30.23 0.960 24.38 0.390 9.91 0.650 9/16 904 1/4 7/16 – 20 4500 310 5/8 PDF
H-ZCOSL8-6U-S316 0.300 7.62 1.540 39.12 1.330 33.78 0.440 11.18 0.790 11/16 906 1/2 9/16 – 18 3600 240 1 1/16 PDF
H-ZCOSL8-8U-S316 0.400 10.16 1.650 41.91 1.330 33.78 0.500 12.70 1.010 7/8 908 1/2 3/4 – 16 3600 240 1 1/16 PDF
H-ZCOSL12-12U-S316 0.620 15.75 2.130 54.10 1.530 38.86 0.660 16.76 1.440 1 1/4 912 3/4 1 1/16 – 12 2900 190 1 3/8 PDF
H-ZCOSL16-16U-S316 0.870 22.10 2.310 58.67 1.720 43.69 0.660 16.76 1.730 1 1/2 916 1 1 5/16 – 12 2300 150 1 11/16 PDF
