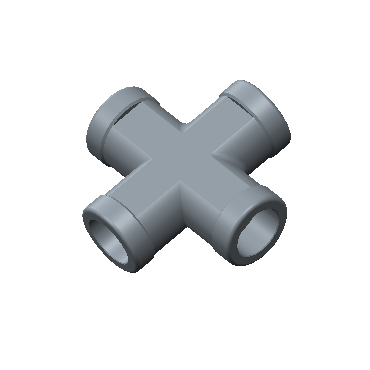

Union Cross (H-SWXA)

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Connects ZCO glands.
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Hex Flat H (in) Size (in) Working Pressure (psig) Working Pressure (bar) PDF
H-ZCOUA-4-S316 0.180 4.57 1.250 31.75 5/8 1/4 14300 980 PDF
H-ZCOUA-8-S316 0.400 10.16 1.500 38.10 15/16 1/2 11100 760 PDF
