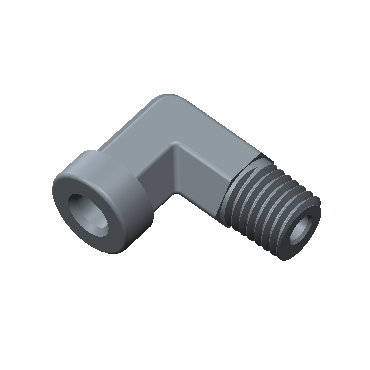

Description
| Product | Dimension D (mm) | Dimension d (mm) | Dimension E (mm) | Dimension H (mm) | Dimension L (mm) | Dimension L₁ (mm) | Dimension P (in) | Tube O.D. (in) | |
| H-SLG4T-4N-S316 | 15.80 | 4.60 | 7.10 | 12.70 | 20.10 | 26.70 | 1/4 | 1/4 | |
| H-SLG6T-4N-S316 | 15.80 | 7.10 | 7.90 | 12.70 | 26.40 | 26.70 | 1/4 | 3/8 | |
| H-SLG6T-6N-S316 | 20.60 | 7.10 | 7.90 | 17.40 | 24.60 | 29.70 | 3/8 | 3/8 | |
| H-SLG6T-8N-S316 | 23.80 | 7.10 | 7.90 | 20.60 | 25.90 | 36.00 | 1/2 | 3/8 | |
| H-SLG8T-8N-S316 | 23.80 | 10.20 | 9.70 | 20.60 | 27.40 | 36.00 | 1/2 | 1/2 | |
| H-SLG12T-12N-S316 | 28.60 | 15.70 | 11.20 | 25.40 | 37.00 | 37.00 | 3/4 | 1/4 |
