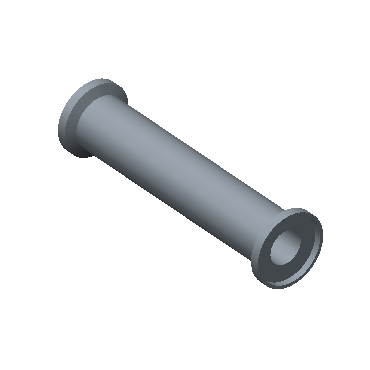

Union with Shoulder

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Wall Thickness (in) Wall Thickness (mm) Working Pressure (psig) Working Pressure (bar) PDF
H-MU-4A 0.960 24.40 1/4 0.035 5100 351 PDF
H-MU-6A 0.940 23.80 3/8 0.035 3300 227 PDF
H-MU-8A 0.920 23.40 1/2 0.049 3700 254 PDF
H-MU-12A 0.920 23.40 3/4 0.049 2400 165 PDF
H-MU-16A 1.170 29.80 1 0.065 2400 165 PDF
H-MU-6MA 1.210 30.80 6 1.0 6095 420 PDF
H-MU-8MA 1.190 30.20 8 1.0 4499 310 PDF
H-MU-10MA 1.190 30.20 10 1.0 3483 240 PDF
H-MU-12MA 1.170 29.80 12 1.0 2902 200 PDF
H-MU-18MA 1.170 29.80 18 1.5 2902 200 PDF
