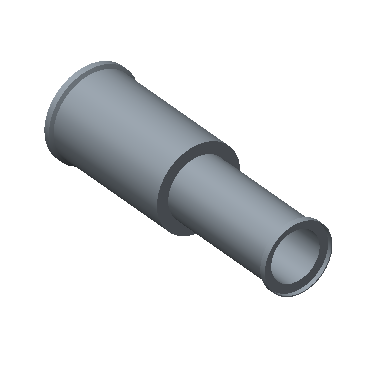

Reducing Union with Shoulder

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.
CONTACT US
FIND A DISTRIBUTOR
Category:

Description

Product Dimension C (in) Dimension C (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Tube O.D. (T1) (in) Tube O.D. (T1) (mm) Wall Thickness (in) Wall Thickness (mm) Wall Thickness (T1) (in) Wall Thickness (T1) (mm) PDF
H-MU6-4A 0.73 18.60 1.530 38.80 3/8 1/4 0.035 0.035 PDF
H-MU8-4A 0.73 18.60 1.520 38.60 1/2 1/4 0.049 0.035 PDF
H-MU8-6A 0.72 18.30 1.510 38.30 1/2 3/8 0.049 0.035 PDF
H-MU8M-6MA 0.73 18.60 1.520 38.60 8 6.00 1.0 1.00 PDF
H-MU12M-6MA 0.73 18.60 1.520 38.60 12 6.00 1.0 1.00 PDF
H-MU12M-8MA 0.72 18.30 1.520 38.60 12 8.00 1.0 1.00 PDF
