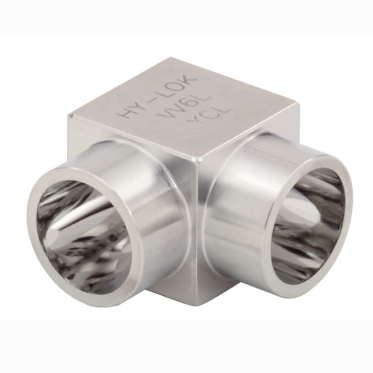

Mini Elbow

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.

Description

Product Body Cube (F) (in) Dimension C (in) Dimension C (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Wall Thickness (in) Wall Thickness (mm) Working Pressure (psig) Working Pressure (bar) PDF
H-MLA-4 5/16 0.25 6.35 0.410 10.40 1/4 0.035 5100 351 PDF
H-MLA-6 7/16 0.25 6.35 0.470 11.90 3/8 0.035 3300 227 PDF
H-MLA-8 9/16 0.25 6.35 0.530 13.50 1/2 0.049 3700 254 PDF
H-MLA-6M 5/16 0.25 6.35 0.410 10.40 6 1.0 6095 420 PDF
H-MLA-8M 7/16 0.25 6.35 0.470 11.90 8 1.0 4499 310 PDF
H-MLA-10M 7/16 0.25 6.35 0.470 11.90 10 1.0 3483 240 PDF
H-MLA-12M 9/16 0.25 6.35 0.530 13.50 12 1.0 2902 200 PDF
