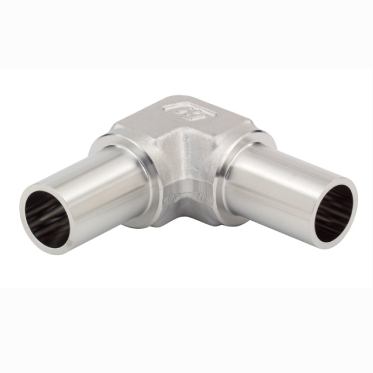

Long Elbow without Shoulder

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Body Flat (F) (in) Dimension C (in) Dimension C (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Wall Thickness (in) Wall Thickness (mm) Working Pressure (psig) Working Pressure (bar) PDF
H-ML-4 7/16 0.75 19.05 1.230 31.20 1/4 0.035 5100 351 PDF
H-ML-6 7/16 0.75 19.05 1.200 30.50 3/8 0.035 3300 227 PDF
H-ML-8 11/16 0.75 19.05 1.340 34.00 1/2 0.049 3700 254 PDF
H-ML-12 15/16 0.75 19.05 1.460 37.10 3/4 0.049 2400 165 PDF
H-ML-16 1 1/4 0.94 24.40 1.850 47.00 1 0.065 2400 165 PDF
H-ML-6M 7/16 0.75 19.05 1.230 31.20 6 1.0 6095 420 PDF
H-ML-8M 7/16 0.75 19.05 1.230 31.20 8 1.0 4499 310 PDF
H-ML-10M 11/16 0.75 19.05 1.340 34.00 10 1.0 3483 240 PDF
H-ML-12M 11/16 0.75 19.05 1.340 34.00 12 1.0 2902 200 PDF
H-ML-18M 15/16 0.75 19.05 1.480 37.60 18 1.5 2902 200 PDF
