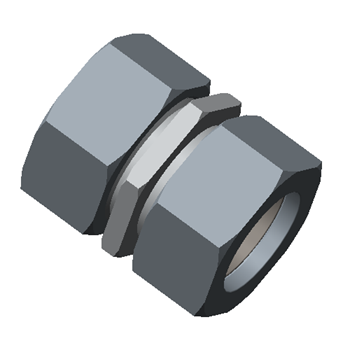

Straight Union

Description

Product h (mm) K L 1 (mm) l 1 (mm) T G(PF) (mm) Material PDF
DU-04LL-STEL 9.00 Carbon Steel PDF
DU-06LL-STEL 11.00 Carbon Steel PDF
DU-08LL-STEL 12.00 Carbon Steel PDF
DU-10LL-STEL 14.00 Carbon Steel PDF
DU-12LL-STEL 17.00 Carbon Steel PDF
DU-06L-STEL 12.00 Carbon Steel PDF
DU-08L-STEL 14.00 Carbon Steel PDF
DU-10L-STEL 17.00 Carbon Steel PDF
DU-12L-STEL 19.00 Carbon Steel PDF
DU-15L-STEL 24.00 Carbon Steel PDF
DU-18L-STEL 27.00 Carbon Steel PDF
DU-22L-STEL 32.00 Carbon Steel PDF
DU-28L-STEL 41.00 Carbon Steel PDF
DU-35L-STEL 46.00 Carbon Steel PDF
DU-42L-STEL 55.00 Carbon Steel PDF
DU-06S-STEL 14.00 Carbon Steel PDF
DU-08S-STEL 17.00 Carbon Steel PDF
DU-10S-STEL 19.00 Carbon Steel PDF
DU-12S-STEL 22.00 Carbon Steel PDF
DU-14S-STEL 24.00 Carbon Steel PDF
DU-16S-STEL 27.00 Carbon Steel PDF
DU-20S-STEL 32.00 Carbon Steel PDF
DU-25S-STEL 41.00 Carbon Steel PDF
DU-30S-STEL 46.00 Carbon Steel PDF
DU-38S-STEL 55.00 Carbon Steel PDF
DU-04LL-SS316 9.00 Stainless Steel 316 PDF
DU-06LL-SS316 11.00 Stainless Steel 316 PDF
DU-08LL-SS316 12.00 Stainless Steel 316 PDF
DU-10LL-SS316 14.00 Stainless Steel 316 PDF
DU-12LL-SS316 17.00 Stainless Steel 316 PDF
DU-06L-SS316 12.00 Stainless Steel 316 PDF
DU-08L-SS316 14.00 Stainless Steel 316 PDF
DU-10L-SS316 17.00 Stainless Steel 316 PDF
DU-12L-SS316 19.00 Stainless Steel 316 PDF
DU-15L-SS316 24.00 Stainless Steel 316 PDF
DU-18L-SS316 27.00 Stainless Steel 316 PDF
DU-22L-SS316 32.00 Stainless Steel 316 PDF
DU-28L-SS316 41.00 Stainless Steel 316 PDF
DU-35L-SS316 46.00 Stainless Steel 316 PDF
DU-42L-SS316 55.00 Stainless Steel 316 PDF
DU-06S-SS316 14.00 Stainless Steel 316 PDF
DU-08S-SS316 17.00 Stainless Steel 316 PDF
DU-10S-SS316 19.00 Stainless Steel 316 PDF
DU-12S-SS316 22.00 Stainless Steel 316 PDF
DU-14S-SS316 24.00 Stainless Steel 316 PDF
DU-16S-SS316 27.00 Stainless Steel 316 PDF
DU-20S-SS316 32.00 Stainless Steel 316 PDF
DU-25S-SS316 41.00 Stainless Steel 316 PDF
DU-30S-SS316 46.00 Stainless Steel 316 PDF
DU-38S-SS316 55.00 Stainless Steel 316 PDF
DU-04LL-BRAS 9.00 Brass PDF
DU-06LL-BRAS 11.00 Brass PDF
DU-08LL-BRAS 12.00 Brass PDF
DU-10LL-BRAS 14.00 Brass PDF
DU-12LL-BRAS 17.00 Brass PDF
DU-06L-BRAS 12.00 Brass PDF
DU-08L-BRAS 14.00 Brass PDF
DU-10L-BRAS 17.00 Brass PDF
DU-12L-BRAS 19.00 Brass PDF
DU-15L-BRAS 24.00 Brass PDF
DU-18L-BRAS 27.00 Brass PDF
DU-22L-BRAS 32.00 Brass PDF
DU-28L-BRAS 41.00 Brass PDF
DU-35L-BRAS 46.00 Brass PDF
DU-42L-BRAS 55.00 Brass PDF
DU-06S-BRAS 14.00 Brass PDF
DU-08S-BRAS 17.00 Brass PDF
DU-10S-BRAS 19.00 Brass PDF
DU-12S-BRAS 22.00 Brass PDF
DU-14S-BRAS 24.00 Brass PDF
DU-16S-BRAS 27.00 Brass PDF
DU-20S-BRAS 32.00 Brass PDF
DU-25S-BRAS 41.00 Brass PDF
DU-30S-BRAS 46.00 Brass PDF
DU-38S-BRAS 55.00 Brass PDF
