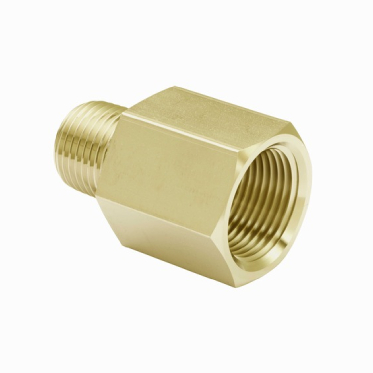

Adapter (Female NPT to male ISO parallel)

  • Precision pipe fittings for instrumentation and process control
  • Fine threads constructed to ensure leak-free & reliable systems
  • Male threads are protected with plastic cap
  • Various materials including SS316, Brass and Carbon steel
  • Many choice of connections and configurations are available
  • Female NPT to male ISO parallel
SKU N/A Categories ,
[variations_table]
[extract_table_to_array]

Description

Product Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension E (mm) Dimension H (Hex) (mm) NPT Thread Size (in) Thread Size BSP/ISO (in) PDF
H-MFAB-2GN-BRAS 13.70 14.20 1/8 1/8-28 (228/1) PDF
H-MFAB-4GN-BRAS 17.80 19.05 1/4 1/4-19 (228/1) PDF
H-MFAB-6GN-BRAS 21.80 22.20 3/8 3/8-19 (228/1) PDF
H-MFAB-8GN-BRAS 26.10 26.90 1/2 1/2-14 (228/1) PDF
H-MFAB-12GN-BRAS 31.50 33.30 3/4 3/4-14 (228/1) PDF
H-MFAB-16GN-BRAS 38.90 41.20 1 1-11 (228/1) PDF
H-MFAB-2GN-STEL 13.70 14.20 1/8 1/8-28 (228/1) PDF
H-MFAB-4GN-STEL 17.80 19.05 1/4 1/4-19 (228/1) PDF
H-MFAB-6GN-STEL 21.80 22.20 3/8 3/8-19 (228/1) PDF
H-MFAB-8GN-STEL 26.10 26.90 1/2 1/2-14 (228/1) PDF
H-MFAB-12GN-STEL 31.50 33.30 3/4 3/4-14 (228/1) PDF
H-MFAB-16GN-STEL 38.90 41.20 1 1-11 (228/1) PDF
H-MFAB-2GN-S316 13.70 14.20 1/8 1/8-28 (228/1) PDF
H-MFAB-4GN-S316 17.80 19.05 1/4 1/4-19 (228/1) PDF
H-MFAB-6GN-S316 21.80 22.20 3/8 3/8-19 (228/1) PDF
H-MFAB-8GN-S316 26.10 26.90 1/2 1/2-14 (228/1) PDF
H-MFAB-12GN-S316 31.50 33.30 3/4 3/4-14 (228/1) PDF
H-MFAB-16GN-S316 38.90 41.20 1 1-11 (228/1) PDF
