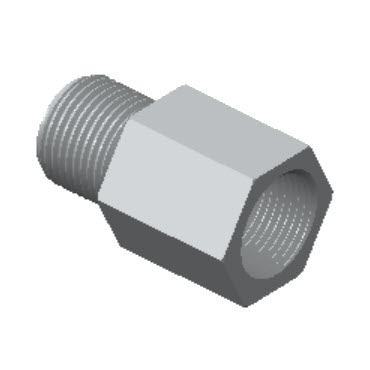

Female NPT Connector

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
[variations_table]
[extract_table_to_array]

Description

Product Dimension d (in) Dimension d (mm) Dimension H (in) Dimension L (in) Dimension L (mm) Dimension P (in) ZCR Size (in) PDF
H-ZFC2-1N 0.090 2.30 7/16 1.100 27.90 1/16 1/8 PDF
H-ZFC2-2N 0.090 2.30 9/16 1.190 30.20 1/8 1/8 PDF
H-ZFC4-2N 0.180 4.55 5/8 1.410 35.80 1/8 1/4 PDF
H-ZFC4-4N 0.180 4.55 3/4 1.540 39.10 1/4 1/4 PDF
H-ZFC8-6N 0.400 10.14 15/16 1.760 44.70 3/8 1/2 PDF
H-ZFC8-8N 0.400 10.14 11/16 1.990 50.50 1/2 1/2 PDF
H-ZFC12-12N 0.620 15.70 15/16 2.360 59.90 3/4 3/4 PDF
H-ZFC16-16N 0.870 22.10 15/8 2.510 63.80 1 1 PDF
