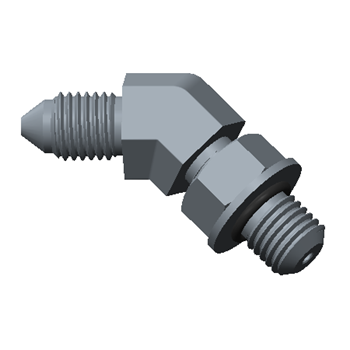

| Product | Dimension D (mm) | Dimension H (Hex) (mm) | Dimension h (Hex) (mm) | Dimension H1 (Hex) (mm) | Dimension L (mm) | Dimension L1 (mm) | Dimension L2 (mm) | Dimension L3 (mm) | Material | T (UNF) | Tube O.D. (in) | Tube O.D. (mm) | Unified National Fine Thread (U) | |
| FOLMB2T-02U-S316 | 1.60 | 11.10 | 17.50 | 8.40 | 22.40 | Stainless Steel 316 | 5/16″-24 | 1/8 | 3 | 5/16″-24 | ||||
| FOLMB3T-03U-S316 | 3.20 | 12.70 | 17.50 | 8.40 | 22.40 | Stainless Steel 316 | 3/8″-24 | 3/16 | 4 | 3/8″-24 | ||||
| FOLMB4T-04U-S316 | 4.40 | 14.20 | 18.30 | 9.80 | 26.70 | Stainless Steel 316 | 7/16″-20 | 1/4 | 6 | 7/16″-20 | ||||
| FOLMB5T-05U-S316 | 6.00 | 15.80 | 19.60 | 9.80 | 26.70 | Stainless Steel 316 | 1/2″-20 | 5/16 | 8 | 1/2″-20 | ||||
| FOLMB6T-06U-S316 | 7.50 | 17.40 | 21.10 | 11.00 | 29.00 | Stainless Steel 316 | 9/16″-18 | 3/8 | 10 | 9/16″-18 | ||||
| FOLMB8T-08U-S316 | 9.90 | 22.20 | 24.90 | 12.50 | 33.00 | Stainless Steel 316 | 3/4″-16 | 1/2 | 12 | 3/4″-16 | ||||
| FOLMB10T-10U-S316 | 12.30 | 25.40 | 28.20 | 14.30 | 38.60 | Stainless Steel 316 | 7/8″-14 | 5/8 | 16 | 7/8″-14 | ||||
| FOLMB12T-12U-S316 | 15.50 | 31.70 | 32.50 | 16.50 | 43.90 | Stainless Steel 316 | 1 1/16″-12 | 3/4 | 18|20 | 1 1/16″-12 | ||||
| FOLMB14T-14U-S316 | 18.00 | 34.90 | 36.80 | 16.50 | 47.20 | Stainless Steel 316 | 1 3/16″-12 | 7/8 | 22 | 1 3/16″-12 | ||||
| FOLMB16T-16U-S316 | 21.50 | 38.10 | 37.30 | 16.50 | 47.20 | Stainless Steel 316 | 1 5/16″-12 | 1 | 25 | 1 5/16″-12 | ||||
| FOLMB20T-20U-S316 | 27.50 | 47.60 | 40.40 | 16.50 | 48.50 | Stainless Steel 316 | 1 5/8″-12 | 1-1/4 | 32 | 1 5/8″-12 | ||||
| FOLMB24T-24U-S316 | 33.30 | 53.90 | 45.20 | 16.50 | 48.50 | Stainless Steel 316 | 1 7/8″-12 | 1-1/2 | 38 | 1 7/8″-12 | ||||
| FOLMB32T-32U-S316 | 45.00 | 69.80 | 56.40 | 16.50 | 47.20 | Stainless Steel 316 | 2 1/2″-12 | 2 | 50 | 2 1/2″-12 | ||||
| FOLMB2T-02U-BRAS | 1.60 | 11.10 | 17.50 | 8.40 | 22.40 | Brass | 5/16″-24 | 1/8 | 3 | 5/16″-24 | ||||
| FOLMB3T-03U-BRAS | 3.20 | 12.70 | 17.50 | 8.40 | 22.40 | Brass | 3/8″-24 | 3/16 | 4 | 3/8″-24 | ||||
| FOLMB4T-04U-BRAS | 4.40 | 14.20 | 18.30 | 9.80 | 26.70 | Brass | 7/16″-20 | 1/4 | 6 | 7/16″-20 | ||||
| FOLMB5T-05U-BRAS | 6.00 | 15.80 | 19.60 | 9.80 | 26.70 | Brass | 1/2″-20 | 5/16 | 8 | 1/2″-20 | ||||
| FOLMB6T-06U-BRAS | 7.50 | 17.40 | 21.10 | 11.00 | 29.00 | Brass | 9/16″-18 | 3/8 | 10 | 9/16″-18 | ||||
| FOLMB8T-08U-BRAS | 9.90 | 22.20 | 24.90 | 12.50 | 33.00 | Brass | 3/4″-16 | 1/2 | 12 | 3/4″-16 | ||||
| FOLMB10T-10U-BRAS | 12.30 | 25.40 | 28.20 | 14.30 | 38.60 | Brass | 7/8″-14 | 5/8 | 16 | 7/8″-14 | ||||
| FOLMB12T-12U-BRAS | 15.50 | 31.70 | 32.50 | 16.50 | 43.90 | Brass | 1 1/16″-12 | 3/4 | 18|20 | 1 1/16″-12 | ||||
| FOLMB14T-14U-BRAS | 18.00 | 34.90 | 36.80 | 16.50 | 47.20 | Brass | 1 3/16″-12 | 7/8 | 22 | 1 3/16″-12 | ||||
| FOLMB16T-16U-BRAS | 21.50 | 38.10 | 37.30 | 16.50 | 47.20 | Brass | 1 5/16″-12 | 1 | 25 | 1 5/16″-12 | ||||
| FOLMB20T-20U-BRAS | 27.50 | 47.60 | 40.40 | 16.50 | 48.50 | Brass | 1 5/8″-12 | 1-1/4 | 32 | 1 5/8″-12 | ||||
| FOLMB24T-24U-BRAS | 33.30 | 53.90 | 45.20 | 16.50 | 48.50 | Brass | 1 7/8″-12 | 1-1/2 | 38 | 1 7/8″-12 | ||||
| FOLMB32T-32U-BRAS | 45.00 | 69.80 | 56.40 | 16.50 | 47.20 | Brass | 2 1/2″-12 | 2 | 50 | 2 1/2″-12 | ||||
| FOLMB2T-02U-STEL | 1.60 | 11.10 | 17.50 | 8.40 | 22.40 | Carbon Steel | 5/16″-24 | 1/8 | 3 | 5/16″-24 | ||||
| FOLMB3T-03U-STEL | 3.20 | 12.70 | 17.50 | 8.40 | 22.40 | Carbon Steel | 3/8″-24 | 3/16 | 4 | 3/8″-24 | ||||
| FOLMB4T-04U-STEL | 4.40 | 14.20 | 18.30 | 9.80 | 26.70 | Carbon Steel | 7/16″-20 | 1/4 | 6 | 7/16″-20 | ||||
| FOLMB5T-05U-STEL | 6.00 | 15.80 | 19.60 | 9.80 | 26.70 | Carbon Steel | 1/2″-20 | 5/16 | 8 | 1/2″-20 |
