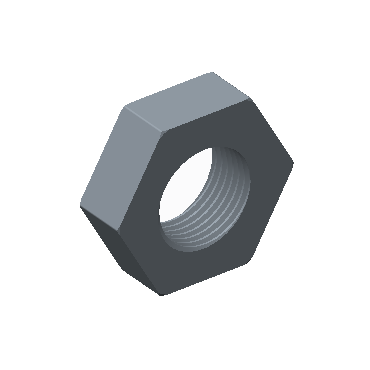

Bulkhead Lock Nut

$0.00

37 Flared Tube Fittings for SAE J514

Tube Fittings DIN2353

Category:

Description

Product Dimension H (Hex) (mm) Dimension L (mm) Material Tube O.D. (in) Tube O.D. (mm) Unified National Fine Thread (U) PDF
FLN-2T-S316 14.20 5.60 Stainless Steel 316 1/8 3 5/16″-24 PDF
FLN-3T-S316 15.80 5.60 Stainless Steel 316 3/16 4 3/8″-24 PDF
FLN-4T-S316 17.40 6.40 Stainless Steel 316 1/4 6 7/16″-20 PDF
FLN-5T-S316 19.00 6.40 Stainless Steel 316 5/16 8 1/2″-20 PDF
FLN-6T-S316 20.60 6.90 Stainless Steel 316 3/8 10 9/16″-18 PDF
FLN-8T-S316 25.40 7.90 Stainless Steel 316 1/2 12 3/4″-16 PDF
FLN-10T-S316 28.50 9.10 Stainless Steel 316 5/8 16 7/8″-14 PDF
FLN-12T-S316 34.90 10.40 Stainless Steel 316 3/4 18|20 1 1/16″-12 PDF
FLN-14T-S316 38.10 10.40 Stainless Steel 316 7/8 22 1 3/16″-12 PDF
FLN-16T-S316 41.20 10.40 Stainless Steel 316 1 25 1 5/16″-12 PDF
FLN-20T-S316 47.60 10.40 Stainless Steel 316 1-1/4 32 1 5/8″-12 PDF
FLN-24T-S316 53.90 10.40 Stainless Steel 316 1-1/2 38 1 7/8″-12 PDF
FLN-32T-S316 69.80 10.40 Stainless Steel 316 2 50 2 1/2″-12 PDF
FLN-2T-BRAS 14.20 5.60 Brass 1/8 3 5/16″-24 PDF
FLN-3T-BRAS 15.80 5.60 Brass 3/16 4 3/8″-24 PDF
FLN-4T-BRAS 17.40 6.40 Brass 1/4 6 7/16″-20 PDF
FLN-5T-BRAS 19.00 6.40 Brass 5/16 8 1/2″-20 PDF
FLN-6T-BRAS 20.60 6.90 Brass 3/8 10 9/16″-18 PDF
FLN-8T-BRAS 25.40 7.90 Brass 1/2 12 3/4″-16 PDF
FLN-10T-BRAS 28.50 9.10 Brass 5/8 16 7/8″-14 PDF
FLN-12T-BRAS 34.90 10.40 Brass 3/4 18|20 1 1/16″-12 PDF
FLN-14T-BRAS 38.10 10.40 Brass 7/8 22 1 3/16″-12 PDF
FLN-16T-BRAS 41.20 10.40 Brass 1 25 1 5/16″-12 PDF
FLN-20T-BRAS 47.60 10.40 Brass 1-1/4 32 1 5/8″-12 PDF
FLN-24T-BRAS 53.90 10.40 Brass 1-1/2 38 1 7/8″-12 PDF
FLN-32T-BRAS 69.80 10.40 Brass 2 50 2 1/2″-12 PDF
FLN-2T-STEL 14.20 5.60 Carbon Steel 1/8 3 5/16″-24 PDF
FLN-3T-STEL 15.80 5.60 Carbon Steel 3/16 4 3/8″-24 PDF
FLN-4T-STEL 17.40 6.40 Carbon Steel 1/4 6 7/16″-20 PDF
FLN-5T-STEL 19.00 6.40 Carbon Steel 5/16 8 1/2″-20 PDF
FLN-6T-STEL 20.60 6.90 Carbon Steel 3/8 10 9/16″-18 PDF
FLN-8T-STEL 25.40 7.90 Carbon Steel 1/2 12 3/4″-16 PDF
FLN-10T-STEL 28.50 9.10 Carbon Steel 5/8 16 7/8″-14 PDF
FLN-12T-STEL 34.90 10.40 Carbon Steel 3/4 18|20 1 1/16″-12 PDF
FLN-14T-STEL 38.10 10.40 Carbon Steel 7/8 22 1 3/16″-12 PDF
FLN-16T-STEL 41.20 10.40 Carbon Steel 1 25 1 5/16″-12 PDF
FLN-20T-STEL 47.60 10.40 Carbon Steel 1-1/4 32 1 5/8″-12 PDF
FLN-24T-STEL 53.90 10.40 Carbon Steel 1-1/2 38 1 7/8″-12 PDF
FLN-32T-STEL 69.80 10.40 Carbon Steel 2 50 2 1/2″-12 PDF
