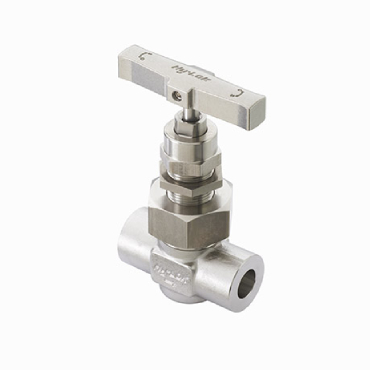

| Product | Orifice (mm) | Inlet End Connection | Outlet End Connection | S Angle (mm) | S Straight (mm) | Dimension L (mm) | Dimension L3 (mm) | Dimension P (mm) | Dimension M (mm) | Dimension M1 (mm) | Dimension M2 (mm) | Dimension N1 (mm) | Dimension Q (mm) | |
| GB1F-2N-S316 | 4.00 | 1/8″Female NPT | 1/8″Female NPT | 82.60 | 77.80 | 50.80 | 25.40 | 45.00 | 32.60 | 27.80 | 32.60 | 9.60 | 15.10 | |
| GB1F-4N-S316 | 4.00 | 1/4″Female NPT | 1/4″Female NPT | 82.60 | 77.80 | 52.40 | 25.40 | 45.00 | 32.60 | 27.80 | 32.60 | 9.60 | 15.10 | |
| GB1M-4N-S316 | 4.00 | 1/4″Male NPT | 1/4″Male NPT | 82.60 | 77.80 | 50.80 | 25.40 | 45.00 | 35.00 | 27.80 | 32.60 | 9.60 | 15.10 | |
| GB1MF-4N-S316 | 4.00 | 1/4″Male NPT /1/4″Female NPT | 1/4″Male NPT /1/4″Female NPT | 82.60 | 77.80 | 52.40 | 25.40 | 45.00 | 32.60 | 27.80 | 32.60 | 9.60 | 15.10 | |
| GB1H-6M-S316 | 4.00 | 6mm Hy-Lok | 6mm Hy-Lok | 77.80 | 77.80 | 61.90 | 37.30 | 45.00 | 38.90 | 27.80 | 27.80 | 9.60 | 15.10 | |
| GB1H-4T-S316 | 4.00 | 1/4″Hy-Lok | 1/4″Hy-Lok | 77.80 | 77.80 | 61.90 | 37.30 | 45.00 | 38.90 | 27.80 | 27.80 | 9.60 | 15.10 | |
| GB1SW-4T-S316 | 4.00 | 1/4″Tube Weld | 1/4″Tube Weld | 77.80 | 77.80 | 46.00 | 30.20 | 45.00 | 31.80 | 27.80 | 27.80 | 9.60 | 15.10 | |
| GB1H-8M-S316 | 4.00 | 8mm Hy-Lok | 8mm Hy-Lok | 77.80 | 77.80 | 61.90 | 37.30 | 45.00 | 38.90 | 27.80 | 27.80 | 9.60 | 15.10 | |
| GB2F-4N-S316 | 6.40 | 1/4″Female NPT | 1/4″Female NPT | 96.90 | 93.70 | 57.20 | 28.60 | 64.00 | 38.10 | 34.10 | 37.30 | 12.70 | 19.90 | |
| GB2F-6N-S316 | 6.40 | 3/8″Female NPT | 3/8″Female NPT | 96.90 | 93.70 | 57.20 | 28.60 | 64.00 | 38.10 | 34.10 | 37.30 | 12.70 | 19.90 | |
| GB2H-10M-S316 | 6.40 | 10mm Hy-Lok | 10mm Hy-Lok | 93.70 | 93.70 | 73.00 | 39.70 | 64.00 | 46.10 | 34.10 | 34.20 | 12.70 | 19.90 | |
| GB2H-6T-S316 | 6.40 | 3/8″Hy-Lok | 3/8″Hy-Lok | 90.50 | 93.70 | 73.00 | 42.90 | 64.00 | 45.30 | 34.10 | 31.00 | 12.70 | 19.90 | |
| GB2H-12M-S316 | 6.40 | 12mm Hy-Lok | 12mm Hy-Lok | 93.70 | 93.70 | 77.80 | 42.10 | 64.00 | 48.40 | 34.10 | 34.20 | 12.70 | 19.90 | |
| GB2H-8T-S316 | 6.40 | 1/2″Hy-Lok | 1/2″Hy-Lok | 93.70 | 93.70 | 77.80 | 42.10 | 64.00 | 47.60 | 34.10 | 34.20 | 12.70 | 19.90 | |
| GB2SW-4P-S316 | 6.40 | 1/4″Pipe Weld | 1/4″Pipe Weld | 93.70 | 93.70 | 57.20 | 28.60 | 64.00 | 38.10 | 34.10 | 37.30 | 12.70 | 19.90 | |
| GB2SW-6T-S316 | 6.40 | 3/8″Tube Weld | 3/8″Tube Weld | 93.70 | 93.70 | 57.20 | 28.60 | 64.00 | 38.10 | 34.10 | 37.30 | 12.70 | 19.90 | |
| GB2SW-8T-S316 | 6.40 | 1/2″Tube Weld | 1/2″Tube Weld | 95.30 | 93.70 | 57.20 | 25.40 | 64.00 | 38.10 | 34.10 | 35.70 | 12.70 | 19.90 | |
| GB3F-8N-S316 | 11.00 | 1/2″Female NPT | 1/2″Female NPT | 126.20 | 121.50 | 79.40 | 39.70 | 89.00 | 50.80 | 46.10 | 50.80 | 15.90 | 26.20 | |
| GB3F-12N-S316 | 11.00 | 3/4″Female NPT | 3/4″Female NPT | 123.90 | 82.60 | 89.00 | 48.40 | 19.90 | 26.20 | |||||
| GB3F-16N-S316 | 11.00 | 1″Female NPT | 1″Female NPT | 129.40 | 92.10 | 89.00 | 54.00 | 25.40 | 26.20 | |||||
| GB3MF-8N-S316 | 11.00 | 1/2″Male NPT/ 1/2″Female NPT | 1/2″Male NPT/ 1/2″Female NPT | 126.20 | 121.50 | 79.40 | 39.70 | 89.00 | 50.80 | 46.00 | 50.80 | 15.90 | 26.20 | |
| GB3MF12N-S316 | 11.00 | 3/4″Male NPT/ 3/4″Female NPT | 3/4″Male NPT/ 3/4″Female NPT | 123.90 | 82.60 | 89.00 | 48.40 | 19.90 | 26.20 | |||||
| GB3MF16N-S316 | 11.00 | 1″Male NPT/1″Female NPT | 1″Male NPT/1″Female NPT | 129.40 | 92.10 | 89.00 | 54.00 | 25.40 | 26.20 | |||||
| GB3H-12M-S316 | 11.00 | 12mm Hy-Lok | 12mm Hy-Lok | 121.50 | 100.00 | 89.00 | 46.00 | 20.00 | 26.20 | |||||
| GB3H-8T-S316 | 11.00 | 1/2″Hy-Lok | 1/2″Hy-Lok | 123.10 | 121.50 | 100.00 | 53.20 | 89.00 | 61.10 | 46.00 | 47.60 | 20.00 | 26.20 | |
| GB3H-12T-S316 | 11.00 | 3/4″Hy-Lok | 3/4″Hy-Lok | 123.10 | 121.50 | 100.00 | 53.20 | 89.00 | 61.10 | 46.00 | 47.60 | 20.20 | 26.20 | |
| GB3H-16T-S316 | 11.00 | 1″Hy-Lok | 1″Hy-Lok | 123.10 | 100.00 | 89.00 | 47.60 | 22.00 | 26.20 | |||||
| GB3SW-8P-S316 | 11.00 | 1/2″Pipe Weld | 1/2″Pipe Weld | 126.20 | 123.10 | 79.40 | 39.70 | 89.00 | 50.80 | 47.60 | 50.80 | 20.00 | 26.20 | |
| GB3SW-8T-S316 | 11.00 | 1/2″Tube Weld | 1/2″Tube Weld | 123.10 | 121.50 | 79.40 | 42.90 | 89.00 | 50.80 | 46.00 | 47.60 | 15.90 | 26.20 | |
| GB3SW-12T-S316 | 11.00 | 3/4″Tube Weld | 3/4″Tube Weld | 121.50 | 79.40 | 89.00 | 46.00 | 15.90 | 26.20 |
