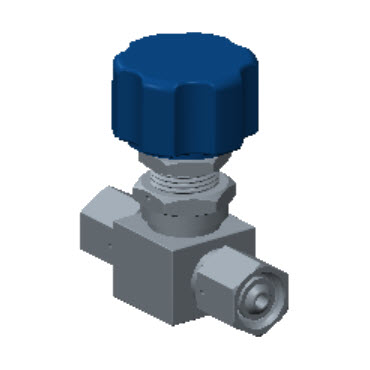

Diaphragm Valve (Manual Handle)

  • 316L VIM/VAR Stainless Steel Body
  • Low Pressure Model
  • ZCR, Tube Butt Weld, and Hy-Lok Tube Fitting
  • Manual Handle or Pneumatic Actuator
  • 100% Helium Leak Tested
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product O.D. (in) End Connection Cv Dimension L (mm) Dimension H (mm) Dimension H1 (mm) Dimension P (mm) PDF
DVVM-4 1/4 Male ZCR Fitting 0.27 58.40 72.10 11.20 6.00 PDF
DVVM-8 1/2 Male ZCR Fitting 0.70 76.00 80.20 16.00 7.00 PDF
DVBW4 1/4 Tube Butt Weld 0.27 44.20 72.10 11.20 6.00 PDF
DVBW-8 1/2 Tube Butt Weld 0.70 68.00 80.20 16.00 7.00 PDF
DVH-4 1/4 Hy-Lok Tube Fitting 0.27 64.40 72.10 11.20 6.00 PDF
DVH-8 1/2 Hy-Lok Tube Fitting 0.70 81.80 80.20 16.00 7.00 PDF
DVVF-4 1/4 Female ZCR Fitting 0.27 70.60 72.10 11.20 6.00 PDF
DVVF-8 1/2 Female ZCR Fitting 0.70 83.00 80.20 16.00 7.00 PDF
