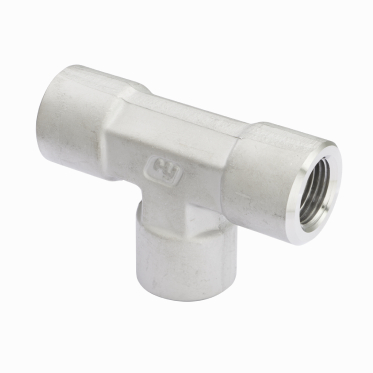

Tee

  • Precision pipe fittings for instrumentation and process control
  • Fine threads constructed to ensure leak-free & reliable systems
  • Male threads are protected with plastic cap
  • Various materials including SS316, Brass and Carbon steel
  • Many choice of connections and configurations are available
  • Female NPT all ports
CONTACT US
FIND A DISTRIBUTOR
Category:

Description

Product Dimension E (mm) Dimension L (mm) Pipe Size (in) Wrench Flat H (mm) PDF
H-STA-2N-BRAS 8.90 24.00 1/8 12.70 PDF
H-STA-4N-BRAS 11.70 29.00 1/4 17.50 PDF
H-STA-6N-BRAS 15.00 34.50 3/8 20.60 PDF
H-STA-8N-BRAS 18.70 37.00 1/2 25.40 PDF
H-STA-12N-BRAS 23.50 46.50 3/4 31.80 PDF
H-STA-16N-BRAS 29.70 48.80 1 42.90 PDF
H-STA-2N-STEL 8.90 24.00 1/8 12.70 PDF
H-STA-4N-STEL 11.70 29.00 1/4 17.50 PDF
H-STA-6N-STEL 15.00 34.50 3/8 20.60 PDF
H-STA-8N-STEL 18.70 37.00 1/2 25.40 PDF
H-STA-12N-STEL 23.50 46.50 3/4 31.80 PDF
H-STA-16N-STEL 29.70 48.80 1 42.90 PDF
H-STA-2N-S316 8.90 24.00 1/8 12.70 PDF
H-STA-4N-S316 11.70 29.00 1/4 17.50 PDF
H-STA-6N-S316 15.00 34.50 3/8 20.60 PDF
H-STA-8N-S316 18.70 37.00 1/2 25.40 PDF
H-STA-12N-S316 23.50 46.50 3/4 31.80 PDF
H-STA-16N-S316 29.70 48.80 1 42.90 PDF
