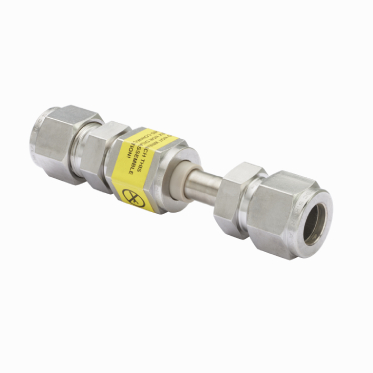

Dielectric Fittings

  • 316 stainless steel for use in harsh environments
  • Thermoplastic insulation
  • Gageable Hy-Lok tube fittings or pipe thread end connections (NPT/BSP)
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Dimension D (in) Dimension D (mm) Dimension E (in) Dimension E (mm) Dimension F (in) Dimension F (mm) G Min. Opening (in) G Min. Opening (mm) H Hex Flat (in) H Hex Flat (mm) H1 Hex Flat (in) H1 Hex Flat (mm) H2 Hex Flat (in) H2 Hex Flat (mm) Tube size (in) Tube size (mm) Type PDF
CDF-4-S316 3.770 95.80 2.570 65.30 0.600 15.20 0.190 4.80 9/16 1/2 13/16 1/4 Tube Fittings PDF
CDF-6-S316 3.920 99.60 2.590 65.80 0.660 18.80 0.280 7.10 11/16 5/8 13/16 3/8 Tube Fittings PDF
CDF-8-S316 4.170 106.00 2.370 60.20 0.900 22.90 0.280 7.10 7/8 13/16 13/16 1/2 Tube Fittings PDF
N/A 4.230 107.00 2.430 61.70 0.900 22.90 0.280 7.10 22.00 22.00 22.00 12.00 Tube Fittings PDF
CDFN-4H-4T-S316 3.730 94.70 0.660 16.80 0.280 7.10 11/16 5/8 7/8 3/8 Tube Fittings to Male NPT PDF
