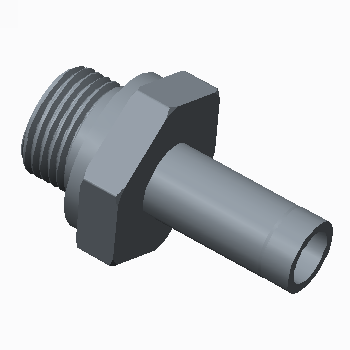

O-Seal Straight Thread Male Adapter

SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Type Material Tube O.D. (in) Tube O.D. (mm) Dimension D (mm) Dimension L (mm) Dimension l (mm) Width Across Flat h (in) Width Across Flat h (mm)
CAMOS-2-2U-BRAS Brass 1/8 3.17 2.03 32.51 8.63 9/16 14.28
CAMOS-3-3U-BRAS Brass 1/8 3.17 3.05 35.05 9.65 5/8 15.87
CAMOS-4-4U-BRAS Brass 1/4 6.35 4.32 39.11 10.41 3/4 19.05
CAMOS-5-5U-BRAS Brass 5/16 7.93 5.59 41.65 11.18 7/8 22.22
CAMOS-6-6U-BRAS Brass 3/8 9.52 6.86 43.18 11.94 15/16 23.81
CAMOS-8-8U-BRAS Brass 1/2 12.7 9.40 49.53 11.94 1 1/8 28.57
CAMOS-2-2U-STEL Steel 1/8 3.17 2.03 32.51 8.63 9/16 14.28
CAMOS-3-3U-STEL Steel 1/8 3.17 3.05 35.05 9.65 5/8 15.87
CAMOS-4-4U-STEL Steel 1/4 6.35 4.32 39.11 10.41 3/4 19.05
CAMOS-5-5U-STEL Steel 5/16 7.93 5.59 41.65 11.18 7/8 22.22
CAMOS-6-6U-STEL Steel 3/8 9.52 6.86 43.18 11.94 15/16 23.81
CAMOS-8-8U-STEL Steel 1/2 12.7 9.40 49.53 11.94 1 1/8 28.57
CAMOS-2-2U-S316 Stainless Steel 316 1/8 3.17 2.03 32.51 8.63 9/16 14.28
CAMOS-3-3U-S316 Stainless Steel 316 1/8 3.17 3.05 35.05 9.65 5/8 15.87
CAMOS-4-4U-S316 Stainless Steel 316 1/4 6.35 4.32 39.11 10.41 3/4 19.05
CAMOS-5-5U-S316 Stainless Steel 316 5/16 7.93 5.59 41.65 11.18 7/8 22.22
CAMOS-6-6U-S316 Stainless Steel 316 3/8 9.52 6.86 43.18 11.94 15/16 23.81
CAMOS-8-8U-S316 Stainless Steel 316 1/2 12.7 9.40 49.53 11.94 1 1/8 28.57
