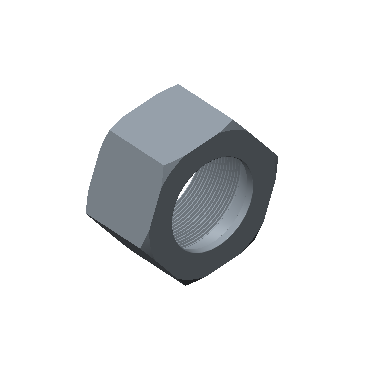

Nut

$0.00

37 Flared Tube Fittings for SAE J514

Tube Fittings DIN2353

Category:

Description

Product Dimension H (Hex) (mm) Dimension L (mm) Material Tube O.D. (in) Tube O.D. (mm) Unified National Fine Thread (U) PDF
FN-2T-S316 9.50 14.00 Stainless Steel 316 1/8 3 5/16″-24 PDF
FN-3T-S316 11.10 15.50 Stainless Steel 316 3/16 4 3/8″-24 PDF
FN-4T-S316 14.20 15.80 Stainless Steel 316 1/4 6 7/16″-20 PDF
FN-5T-S316 15.80 17.30 Stainless Steel 316 5/16 8 1/2″-20 PDF
FN-6T-S316 17.40 18.50 Stainless Steel 316 3/8 10 9/16″-18 PDF
FN-8T-S316 22.20 21.60 Stainless Steel 316 1/2 12 3/4″-16 PDF
FN-10T-S316 25.40 24.90 Stainless Steel 316 5/8 16 7/8″-14 PDF
FN-12T-S316 31.70 26.20 Stainless Steel 316 3/4 18|20 1 1/16″-12 PDF
FN-14T-S316 34.90 27.70 Stainless Steel 316 7/8 22 1 3/16″-12 PDF
FN-16T-S316 38.10 28.70 Stainless Steel 316 1 25 1 5/16″-12 PDF
FN-20T-S316 50.80 31.20 Stainless Steel 316 1-1/4 32 1 5/8″-12 PDF
FN-24T-S316 57.10 36.10 Stainless Steel 316 1-1/2 38 1 7/8″-12 PDF
FN-32T-S316 73.00 44.50 Stainless Steel 316 2 50 2 1/2″-12 PDF
FN-2T-BRAS 9.50 14.00 Brass 1/8 3 5/16″-24 PDF
FN-3T-BRAS 11.10 15.50 Brass 3/16 4 3/8″-24 PDF
FN-4T-BRAS 14.20 15.80 Brass 1/4 6 7/16″-20 PDF
FN-5T-BRAS 15.80 17.30 Brass 5/16 8 1/2″-20 PDF
FN-6T-BRAS 17.40 18.50 Brass 3/8 10 9/16″-18 PDF
FN-8T-BRAS 22.20 21.60 Brass 1/2 12 3/4″-16 PDF
FN-10T-BRAS 25.40 24.90 Brass 5/8 16 7/8″-14 PDF
FN-12T-BRAS 31.70 26.20 Brass 3/4 18|20 1 1/16″-12 PDF
FN-14T-BRAS 34.90 27.70 Brass 7/8 22 1 3/16″-12 PDF
FN-16T-BRAS 38.10 28.70 Brass 1 25 1 5/16″-12 PDF
FN-20T-BRAS 50.00 31.20 Brass 1-1/4 32 1 5/8″-12 PDF
FN-24T-BRAS 57.20 36.10 Brass 1-1/2 38 1 7/8″-12 PDF
FN-32T-BRAS 75.00 44.50 Brass 2 50 2 1/2″-12 PDF
FN-2T-STEL 9.50 14.00 Carbon Steel 1/8 3 5/16″-24 PDF
FN-3T-STEL 11.10 15.50 Carbon Steel 3/16 4 3/8″-24 PDF
FN-4T-STEL 14.20 15.80 Carbon Steel 1/4 6 7/16″-20 PDF
FN-5T-STEL 15.80 17.30 Carbon Steel 5/16 8 1/2″-20 PDF
FN-6T-STEL 17.40 18.50 Carbon Steel 3/8 10 9/16″-18 PDF
FN-8T-STEL 22.20 21.60 Carbon Steel 1/2 12 3/4″-16 PDF
FN-10T-STEL 25.40 24.90 Carbon Steel 5/8 16 7/8″-14 PDF
FN-12T-STEL 31.70 26.20 Carbon Steel 3/4 18|20 1 1/16″-12 PDF
FN-14T-STEL 34.90 27.70 Carbon Steel 7/8 22 1 3/16″-12 PDF
FN-16T-STEL 38.10 28.70 Carbon Steel 1 25 1 5/16″-12 PDF
FN-20T-STEL 50.80 31.20 Carbon Steel 1-1/4 32 1 5/8″-12 PDF
FN-24T-STEL 57.10 36.10 Carbon Steel 1-1/2 38 1 7/8″-12 PDF
FN-32T-STEL 73.00 44.50 Carbon Steel 2 50 2 1/2″-12 PDF
