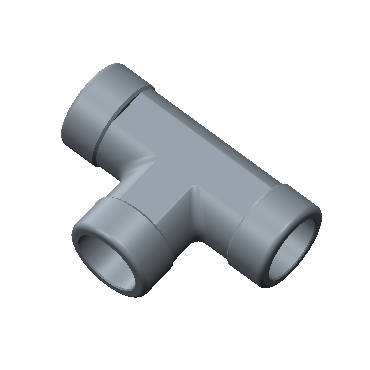

| Product | Dimension D (mm) | Dimension d (mm) | Dimension E (mm) | Dimension H (mm) | Dimension L (mm) | Tube O.D. (in) | Working Pressure (psig) | Working Pressure (bar) | |
| H-SWTA-2T-BRAS | 13.40 | 2.30 | 2.50 | 11.10 | 15.00 | 1/8 | 11800 | 813 | |
| H-SWTA-4T-BRAS | 13.40 | 4.60 | 7.10 | 11.10 | 21.80 | 1/4 | 11300 | 778 | |
| H-SWTA-6T-BRAS | 15.80 | 7.10 | 7.90 | 12.70 | 26.40 | 3/8 | 8400 | 578 | |
| H-SWTA-8T-BRAS | 20.60 | 10.20 | 9.70 | 17.40 | 29.70 | 1/2 | 7800 | 537 | |
| H-SWTA-10T-BRAS | 23.80 | 12.70 | 10.40 | 20.60 | 36.10 | 5/8 | 6700 | 461 | |
| H-SWTA-12T-BRAS | 28.60 | 15.70 | 11.20 | 25.40 | 37.00 | 3/4 | 6700 | 461 | |
| H-SWTA-16T-BRAS | 35.00 | 22.10 | 15.70 | 31.80 | 46.50 | 1 | 6100 | 420 | |
| H-SWTA-2T-STEL | 13.40 | 2.30 | 2.50 | 11.10 | 15.00 | 1/8 | 11800 | 813 | |
| H-SWTA-4T-STEL | 13.40 | 4.60 | 7.10 | 11.10 | 21.80 | 1/4 | 11300 | 778 | |
| H-SWTA-6T-STEL | 15.80 | 7.10 | 7.90 | 12.70 | 26.40 | 3/8 | 8400 | 578 | |
| H-SWTA-8T-STEL | 20.60 | 10.20 | 9.70 | 17.40 | 29.70 | 1/2 | 7800 | 537 | |
| H-SWTA-10T-STEL | 23.80 | 12.70 | 10.40 | 20.60 | 36.10 | 5/8 | 6700 | 461 | |
| H-SWTA-12T-STEL | 28.60 | 15.70 | 11.20 | 25.40 | 37.00 | 3/4 | 6700 | 461 | |
| H-SWTA-16T-STEL | 35.00 | 22.10 | 15.70 | 31.80 | 46.50 | 1 | 6100 | 420 | |
| H-SWTA-2T-S316 | 13.40 | 2.30 | 2.50 | 11.10 | 15.00 | 1/8 | 11800 | 813 | |
| H-SWTA-4T-S316 | 13.40 | 4.60 | 7.10 | 11.10 | 21.80 | 1/4 | 11300 | 778 | |
| H-SWTA-6T-S316 | 15.80 | 7.10 | 7.90 | 12.70 | 26.40 | 3/8 | 8400 | 578 | |
| H-SWTA-8T-S316 | 20.60 | 10.20 | 9.70 | 17.40 | 29.70 | 1/2 | 7800 | 537 | |
| H-SWTA-10T-S316 | 23.80 | 12.70 | 10.40 | 20.60 | 36.10 | 5/8 | 6700 | 461 | |
| H-SWTA-12T-S316 | 28.60 | 15.70 | 11.20 | 25.40 | 37.00 | 3/4 | 6700 | 461 | |
| H-SWTA-16T-S316 | 35.00 | 22.10 | 15.70 | 31.80 | 46.50 | 1 | 6100 | 420 |
