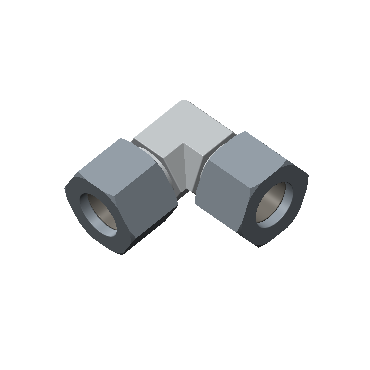

Union Elbow

[variations_table]
[extract_table_to_array]

Description

Product h (mm) K L 1 (mm) l 1 (mm) T G(PF) (mm) Material PDF
DL-04LL-STEL 9.00 Carbon Steel PDF
DL-06LL-STEL 9.00 Carbon Steel PDF
DL-08LL-STEL 12.00 Carbon Steel PDF
DL-10LL-STEL 14.00 Carbon Steel PDF
DL-12LL-STEL 17.00 Carbon Steel PDF
DL-06L-STEL 12.00 Carbon Steel PDF
DL-08L-STEL 12.00 Carbon Steel PDF
DL-10L-STEL 14.00 Carbon Steel PDF
DL-12L-STEL 17.00 Carbon Steel PDF
DL-15L-STEL 19.00 Carbon Steel PDF
DL-18L-STEL 24.00 Carbon Steel PDF
DL-22L-STEL 27.00 Carbon Steel PDF
DL-28L-STEL 36.00 Carbon Steel PDF
DL-35L-STEL 41.00 Carbon Steel PDF
DL-42L-STEL 50.00 Carbon Steel PDF
DL-06S-STEL 12.00 Carbon Steel PDF
DL-08S-STEL 14.00 Carbon Steel PDF
DL-10S-STEL 17.00 Carbon Steel PDF
DL-12S-STEL 17.00 Carbon Steel PDF
DL-14S-STEL 19.00 Carbon Steel PDF
DL-16S-STEL 24.00 Carbon Steel PDF
DL-20S-STEL 27.00 Carbon Steel PDF
DL-25S-STEL 36.00 Carbon Steel PDF
DL-30S-STEL 41.00 Carbon Steel PDF
DL-38S-STEL 50.00 Carbon Steel PDF
DL-04LL-SS316 9.00 Stainless Steel 316 PDF
DL-06LL-SS316 9.00 Stainless Steel 316 PDF
DL-08LL-SS316 12.00 Stainless Steel 316 PDF
DL-10LL-SS316 14.00 Stainless Steel 316 PDF
DL-12LL-SS316 17.00 Stainless Steel 316 PDF
DL-06L-SS316 12.00 Stainless Steel 316 PDF
DL-08L-SS316 12.00 Stainless Steel 316 PDF
DL-10L-SS316 14.00 Stainless Steel 316 PDF
DL-12L-SS316 17.00 Stainless Steel 316 PDF
DL-15L-SS316 19.00 Stainless Steel 316 PDF
DL-18L-SS316 24.00 Stainless Steel 316 PDF
DL-22L-SS316 27.00 Stainless Steel 316 PDF
DL-28L-SS316 36.00 Stainless Steel 316 PDF
DL-35L-SS316 41.00 Stainless Steel 316 PDF
DL-42L-SS316 50.00 Stainless Steel 316 PDF
DL-06S-SS316 12.00 Stainless Steel 316 PDF
DL-08S-SS316 14.00 Stainless Steel 316 PDF
DL-10S-SS316 17.00 Stainless Steel 316 PDF
DL-12S-SS316 17.00 Stainless Steel 316 PDF
DL-14S-SS316 19.00 Stainless Steel 316 PDF
DL-16S-SS316 24.00 Stainless Steel 316 PDF
DL-20S-SS316 27.00 Stainless Steel 316 PDF
DL-25S-SS316 36.00 Stainless Steel 316 PDF
DL-30S-SS316 41.00 Stainless Steel 316 PDF
DL-38S-SS316 50.00 Stainless Steel 316 PDF
DL-04LL-BRAS 9.00 Brass PDF
DL-06LL-BRAS 9.00 Brass PDF
DL-08LL-BRAS 12.00 Brass PDF
DL-10LL-BRAS 14.00 Brass PDF
DL-12LL-BRAS 17.00 Brass PDF
DL-06L-BRAS 12.00 Brass PDF
DL-08L-BRAS 12.00 Brass PDF
DL-10L-BRAS 14.00 Brass PDF
DL-12L-BRAS 17.00 Brass PDF
DL-15L-BRAS 19.00 Brass PDF
DL-18L-BRAS 24.00 Brass PDF
DL-22L-BRAS 27.00 Brass PDF
DL-28L-BRAS 36.00 Brass PDF
DL-35L-BRAS 41.00 Brass PDF
DL-42L-BRAS 50.00 Brass PDF
DL-06S-BRAS 12.00 Brass PDF
DL-08S-BRAS 14.00 Brass PDF
DL-10S-BRAS 17.00 Brass PDF
DL-12S-BRAS 17.00 Brass PDF
DL-14S-BRAS 19.00 Brass PDF
DL-16S-BRAS 24.00 Brass PDF
DL-20S-BRAS 27.00 Brass PDF
DL-25S-BRAS 36.00 Brass PDF
DL-30S-BRAS 41.00 Brass PDF
DL-38S-BRAS 50.00 Brass PDF
